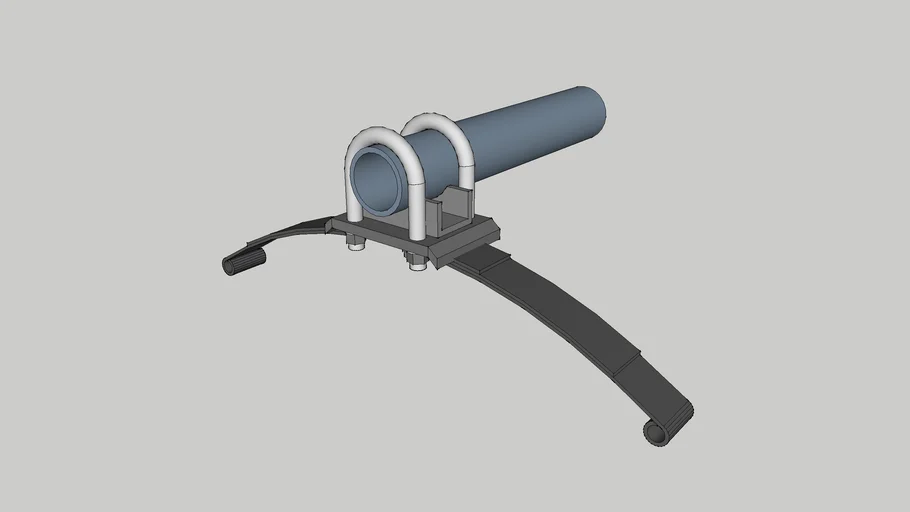

Everything was gotten from etrailer.. and best replicated.
Redline Trailer Leaf Spring double eye Model #1020 20 1/4" long 1 3/4" wide. Specs can be found here: http://www.etrailer.com/p-1020.html
Redline U-Bolt plate Model # 116308. Specs can be found here: http://www.etrailer.com/Trailer-Suspension/Redline/116308.html
Redline U-Bolt Model# 175668. Specs can be found here. http://www.etrailer.com/Trailer-Suspension/Redline/175668.html
This is most likely not to spec. I'm not the greatest at this.. Use it for what you want.. itid be good for a mock-up.. it's close, it just not exact.. I know it's me.. but sketch-up aeint auto-cad either..
Bussaca
#Trailer_leaf_spring_complete
