High detail and realism, Switchable layers for choice of options.
Dimensions based on technical drawings and photos, of whole containers, and individual parts,

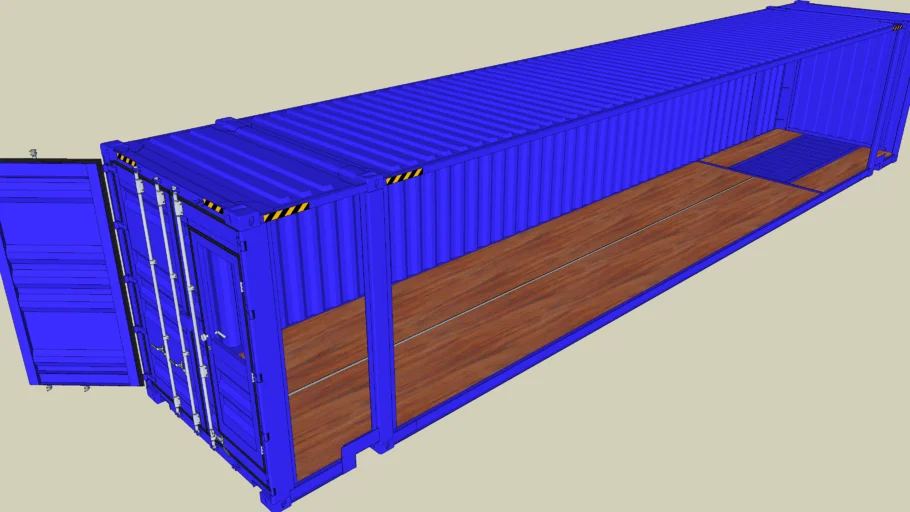

This model is of a 48 foot container, which is NOT an ISO standard size !
Typically used in U.S. domestic intermodal transport, these containers are 6 inches WIDER — so 8 foot 6, or 259 cm outside width.
The height is 9 foot 6 / 290 cm high, like other High-cube boxes.
This model uses regular profile side-rails, and normal height cross-members, as well as a full set of sixteen corner castings (both at the box corners, and at the 40-foot intermediate position); thus, this model has conventional floor height.
Roof, sides, front, doors and floor are all on their own layers, to be switched on/off as preferred.
Doors - left & right individually - can be presented in open (135°) or shut position, by turning appropriate layers on and off.
A regular housedoor (32 inch by 7 foot) has been modelled into one of the container doors as an OPTION (either open / closed).
You can switch the "Double door" OFF, and the regular rightside door ON.
Roof gussets (common on 48 footers) and side gussets (not common) on their own layers, and switchable.
Enjoy !
