The DF-21 (NATO code name: CSS-5) is a two-stage, solid-propellant, single-warhead medium-range ballistic missile (MRBM) system developed by China Changfeng Mechanics and Electronics Technology Academy (also known as 2nd Space Academy). The missile design is based on the two-stage JL-1 submarine-launched ballistic missile (SLBM). The DF-21 is capable of delivering a 500kT nuclear warhead over a distance of 1,800km. The improved DF-21A was reportedly introduced in 1996.
The first test launch of the DF-21 missile took place in May 1985, followed by a second test launch using modified ground support system in May 1987. The missile entered operational service in the late 1980s. In the mid-1990s, 2nd Aerospace Academy also introduced the improved DF-21A (CSS-5 Mod 2) with increased range and accuracy.
The missile is contained in an alumni-alloy cylinder launch–tube which keeps the missile in an invariable temperature environment. The launch tubes have an elevation range of 0 to 90 degrees. The azimuth range is from -180 to +180 degrees. The missile launch-tube is carried on a 3-axes semi-trailer TEL, which is towed by a HY473 6X6 tractor truck. The TEL trailer and tractor are equipped with hydraulically operated stabilisers which are lowered in preparation for the missile launch.
Feel free to use in your own creations, I only ask for acknowledgment should you upload.

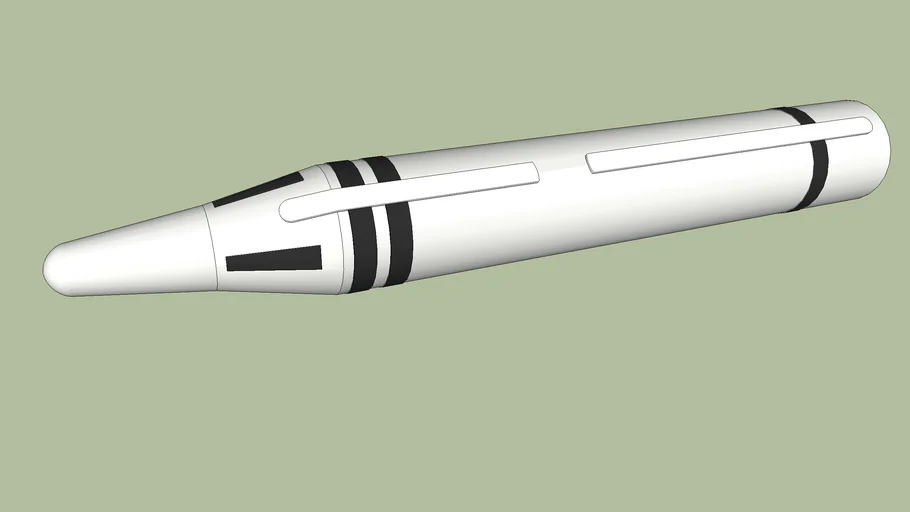

Note: Both width and length are accurate and to scale, however the angles are eye-balled from photographs.
I encourage anyone and everyone to contact me.
Email: RileyAmos0@gmail.com
