Description

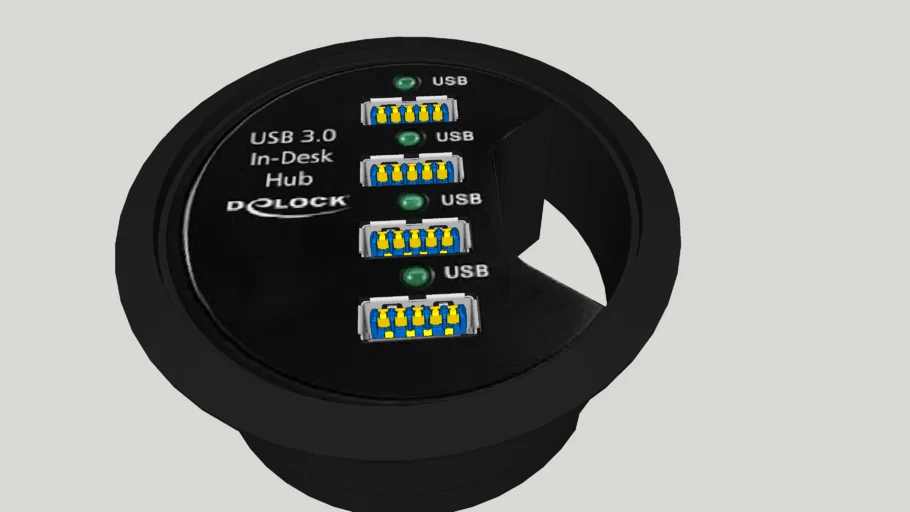

This Delock Hub can be installed into an existing cut-out of your desk and enables you to lead out the cables for monitor, keyboard and mouse. This is a practical and space saving solution which enables you to connect your USB devices easily.
Specification
• Connector:
top side:
4 x USB 3.0 type A female
bottom side:
1 x USB 3.0 type A male
1 x DC jack
• Data transfer rate up to:
SuperSpeed 5 Gb/s,
Hi-Speed 480 Mb/s,
Full-Speed 12 Mb/s,
Low-Speed 1.5 Mb/s
• Mounting diameter: 60 mm
• Mounting depth: 30 mm
• Cable length:
USB 3.0 ca. 115 cm
DC ca. 12 cm
• Plug & Play
Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.5 A
• Output: 5 V / 4 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 1.35 mm
outside: ø ca. 3.5 mm
length: ca. 9.5 mm
System requirements
• Windows XP/XP-64/Vista/Vista-64/7/7-64/8/8.1/8.1-64,
Mac Lion 10.7.4, Linux Kernel 3.x
• PC or notebook with a free USB port
• 60 mm hole in the desk
Package content
• In-Desk Hub
• External power supply
• User manual
