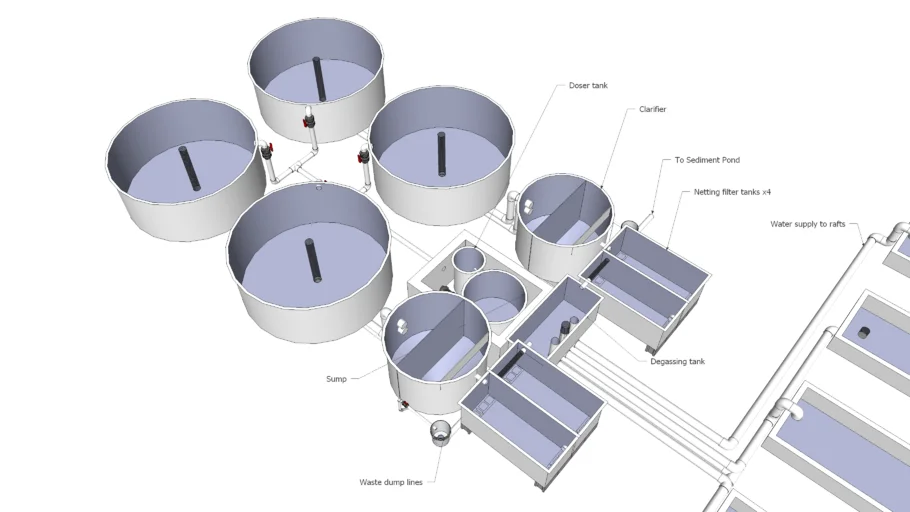

This is a full 3D drawing of the University of Virgin Islands Aquaponics trial I put together from information about sizes found about the net. The drawing is not dimensioned however you can use sketchup to measure what you need. All the items have been drawn to scale. However, distances between items will not be accurate and will need to change depending on your layout.
The pump connection will depend on the size and type of pump you use. All the other pipes and fittings are to scale to the best of my knowledge. The Air lines and blowers have not been included but information on what size and how they were plumbed are available free on the internet with a search for "evaluation of uvi aquaponics".
Feel free to use at your own risk.
