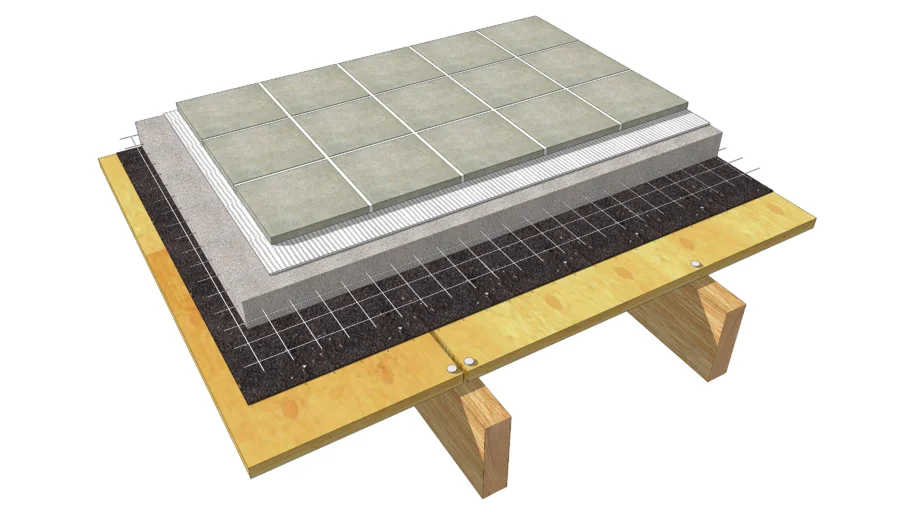

IMI Detail 06.130.0102. This detail shows tile laid in a bed of mortar on a wood subfloor. The tile is adhered using a dry-set or latex-modified portland cement mortar bond coat (optional). There is a cleavage membrane on the plywood, separating the tile assembly from the subfloor. The sand and cement mortar bed is reinforced with 2" x 2" wire mesh. The wood subfloor has 1/8" gap between the exterior glue tongue & groove plywood sheets. This detail is based on TCNA Method F141.
This detail is intended for the use of industry professionals who are competent to evaluate the significance and limitations of the information provided herein. This detail should not be used as the sole guide for masonry design and construction, and IMI disclaims any and all legal responsibility for the consequences of applying the information. For more information contact sconwell@imiweb.org.
