3 way System
2x15" LF Driver
2x10" MF Driver
2x1" HF V- Driver

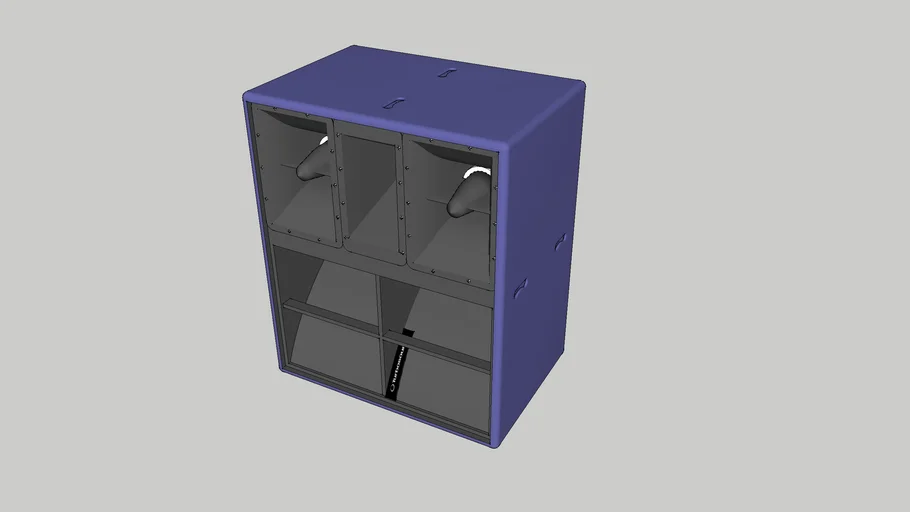

The TMS-3 is the top-of-the-line model in the TMS Series of full range enclosures. It incorporates the patented Turbosound features in a tri-amped enclosure designed specifically for the most demanding professional sound reinforcement applications. The heart of this system is the TurboMid™ device. This uses a unique design, covered worldwide by Principle Patents, which allows it to be used over four octaves (250Hz to 4,000Hz)–a system designer's dream. Due to the geometry of the inner workings of the device, the overall directivity response is much higher than a "normal" horn of the same frontal area. This is a very powerful characteristic, as it allows for highly non-interactive arraying in multiple unit systems. In all TMS Series enclosures, the TurboMid device is combined with a TurboBass™ device, also covered by Principle Patents. The design uses high-velocity partial horn-loading techniques, giving greatly enhanced cone control and providing remarkable levels of bass projection from such a compact enclosure. All TMS Series enclosures are easy to fly; thus, an installed TMS-3 system will be unobtrusive and will obstruct sight lines less than conventional multi-way or larger full-range enclosures. These unique developments in audio design have enabled Turbosound engineers to construct a system which produces very low distortion and a naturally correct acoustic output without the need for less reliable, artificial compensating electronics. The result is a natural, transparent sound quality from and unusually compact enclosure, that is easier to work with than competitive designs.
