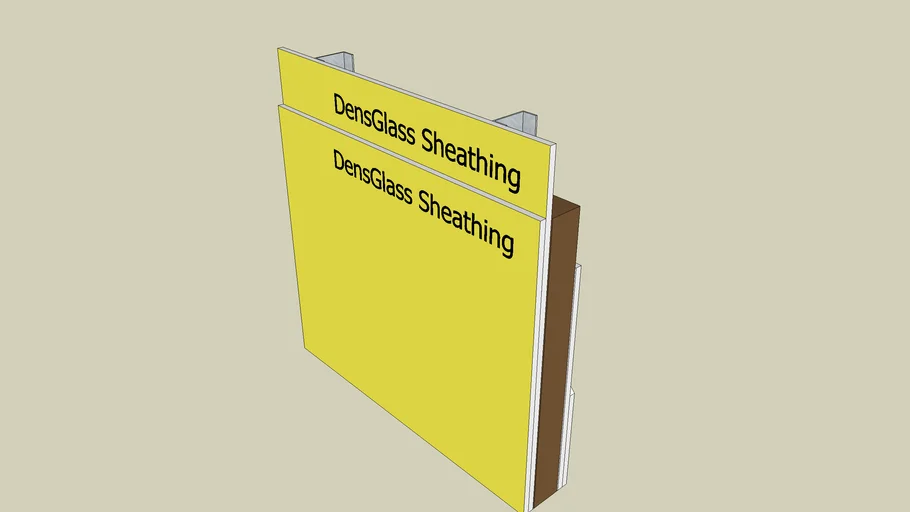

Exterior: Two layers 5/8" DensGlass® Sheathing applied vertically to min. 3 1/2" corrosion resistant 20-gauge steel studs 24" o.c. Base layer attached with 1" Type S-12 corrosion resistant bugle head screws 8" o.c. Face layer attached with 1 5/8" Type S-12 corrosion resistant bugle head screws spaced 12" o.c. Joints staggered.
Interior: Two layers 5/8" ToughRock® Fireguard® gypsum board applied vertically to framing. Base layer attached with 1" Type S-12 bugle head screws 12" o.c. Face layer attached with 1 5/8" Type S-12 bugle head screws spaced 12" o.c. Joints staggered. Insulation to completely fill stud cavity. (Load-bearing: 80% of design load).
***Assemblies are presented for illustration only. It is important that you consult a design professional for assembly information. Georgia-Pacific does not provide architectural or engineering services.***
