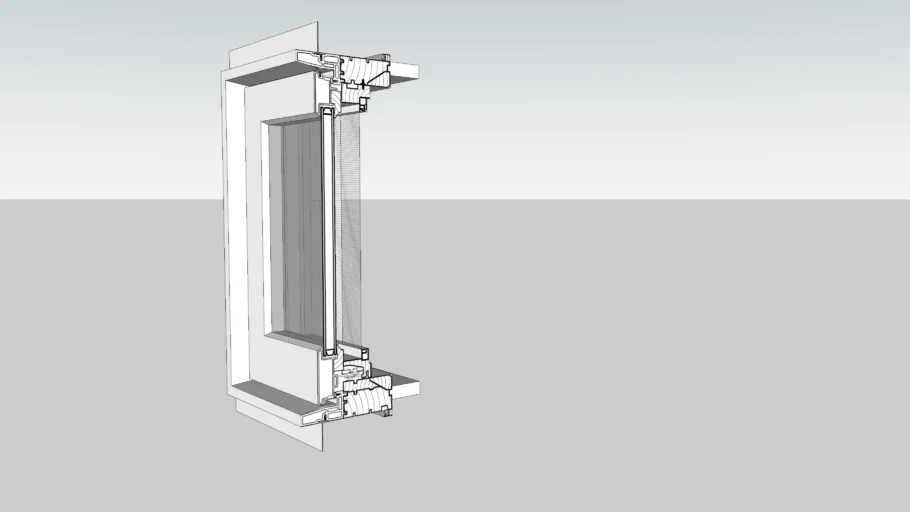

This is a simplified model of an Andersen Casement or Awning Window (the profiles are similar). Use the Layer manager to control visibility of section view as well as to view the window complete. Use a Window select on the edges inside the component to expand the size. Look at the product literature online for standard sizes.
This model was created using information and graphics from online literature.
#Andersen #Awning #Casement #Section #Window
