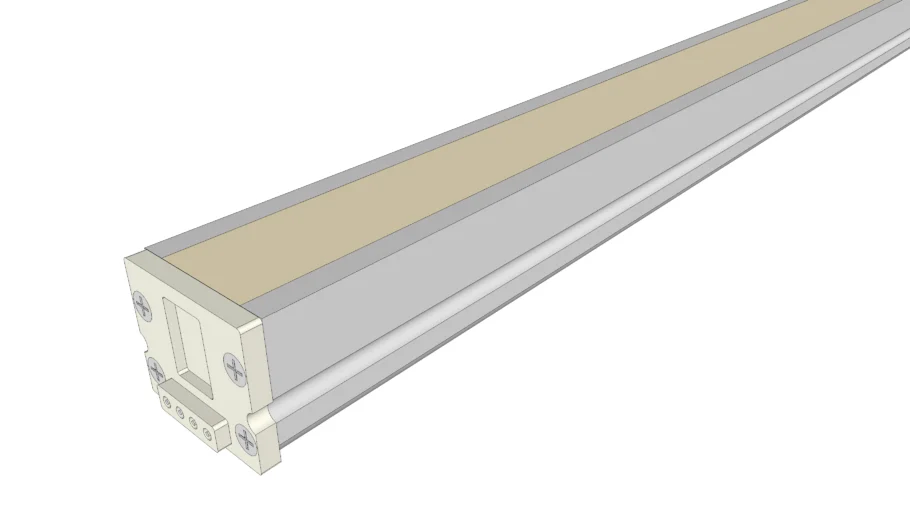

The Light Channel Surface Mount LED features the 12 volt Soft Strip Premium (SS2P) inside a slim aluminum extrusion. The 61 degree white diffuser lens projects a clean line of light and eliminates LED dots, while the clear lens provides maximum light levels. The linear system is sold in 2 inch increments up to 96 inches and includes mounting clips every 2 feet. Fixtures can be linked end-to-end with plug-in or flexible connectors for maximum of 25 feet before refeeding the power.
At only 2.3 watts per foot, each foot of Light Channel contains 36 warm-white, high (80+) CRI LEDs for excellent color rendering. The surface mount fixtures are powered by a 60 watt power supply, which is dimmable with an electronic low voltage dimmer. Includes a 6 foot power feed cable.
Applications
Indoor Only - Task lighting, under/above cabinet, cove, retail, closets Surface Mount Light Channel is identified for use in the storage area of a closet per NEC Article 410.16(A)(3) and 410.16(C)(5).
Fixture is ETL listed for dry location for closet use with clothing and complies with UL Standard 2108.
Lamp
36 warm white (3,000K) LEDs per foot, 80+CRI
LED lamps consume 2.3 watts per foot delivering 115 lumens
