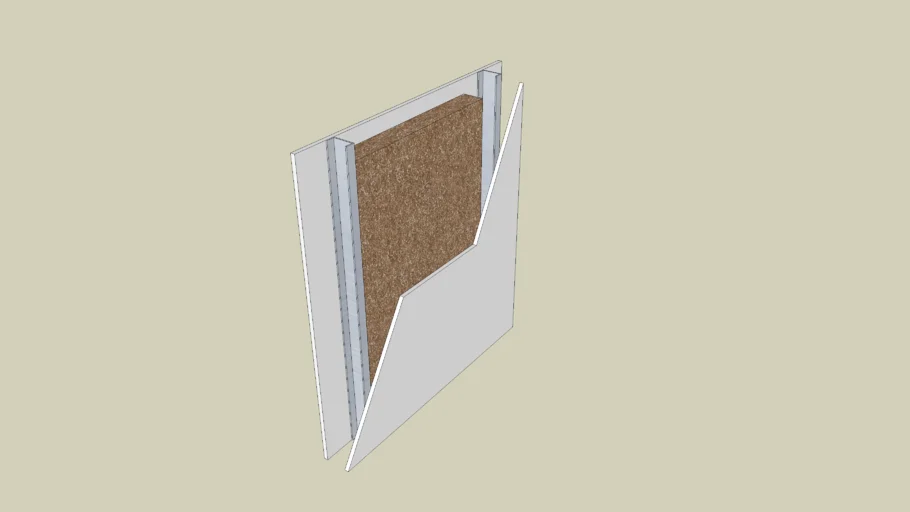

1/2" ToughRock® Fireguard C® gypsum board applied parallel to each side of 2 1/2" steel studs 24" o.c. with 1" Type S drywall screws 8" o.c. at edge of board and 12" o.c. at intermediate studs. 1 1/2" mineral fiber insulation stapled to board in stud space. Joints staggered.
***Assemblies are presented for illustration only. It is important that you consult a design professional for assembly information. Georgia-Pacific does not provide architectural or engineering services.***
