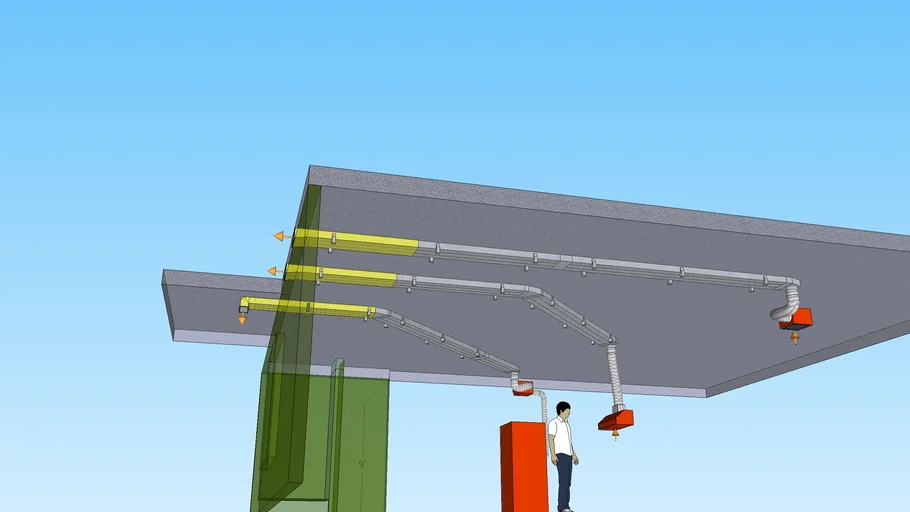

Typical example of ventilation ductwork in a concrete slab. This example shows for 3 typical exhaust types (kitchen, laundry and bathroom), This can be used to hide ventilation ducts in the slab instead of having "drywall bulkheads". Showed couple outlet options for side outlet wall box and soffit type. #Exhaust #HVAC #Inslab #Ventilation #wallbox
