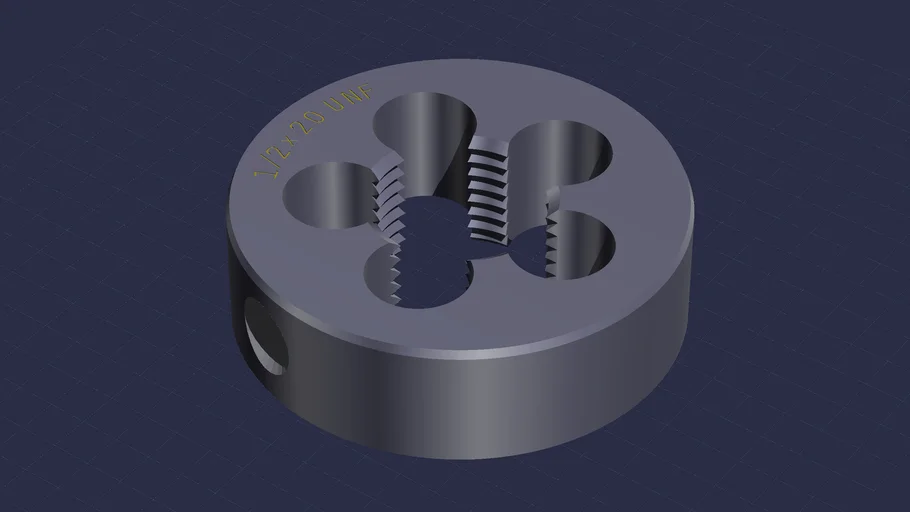

This is a 1/2 x 20 tpi threading die. A shortcut was used in the construction to simplify the model. The cutting edges are not helical. It is presented here at 100 times scale for rendering accuracy in ray tracing programs. #cutting_tools #machining #metal_shop #metallic_texture #thread_die #threading #threads #tooling #tools #tpi
