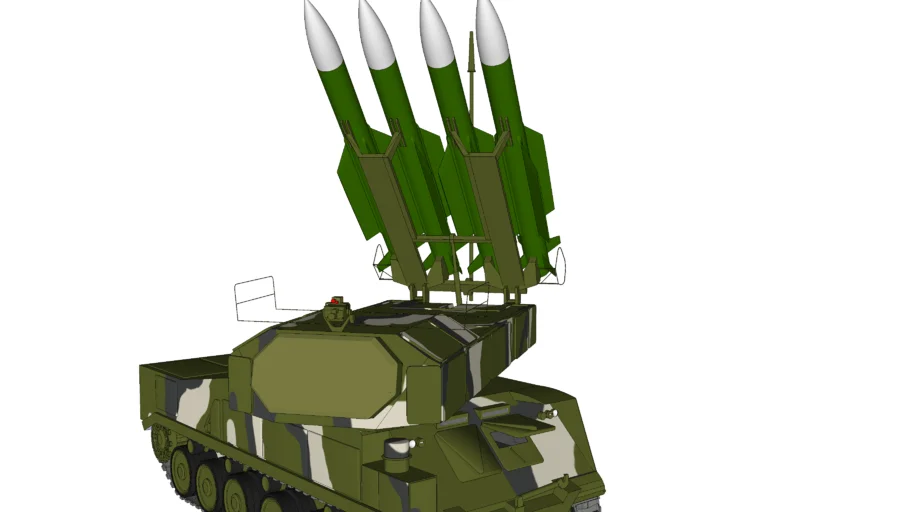

Development of the 9K37M1-2 Buk M1-2 was initiated during the later 1990s. This variant was intented to encompass strategic and tactical aircraft, helicopters in hover, cruise missiles, tactical ballistic missiles, air to surface missiles, precision-guided munitions, maritime surface targets, and high value ground targets. The latter was to include parked aircraft on airfields, missile launchers and command posts.
The most recent variant of this family of weapons is the 9K317 Buk M2 / SA-17 Grizzly, exported as the 9K317E Ural. This variant incorporates some of the most prominent design changes to date. A new 8 round 9A316 TEL/Transloader has been introduced. The new fully autonomous 9A317 TELAR is equipped with a 9S36 passive phased array antenna equipped radar, replacing the mechanically steered antenna in earlier 9S35 Fire Dome equipped TELARs. This is intended to provide the capability to concurrently engage four targets with a single TELAR, and improve countermeasures resistance. A more basic TELAR, the 9A318, is also provided. The baseline 9S18M series acquisition radar is replaced by the 9S117 Kupol M2E. #9M38M1 #GM569 #Novator_9M37
