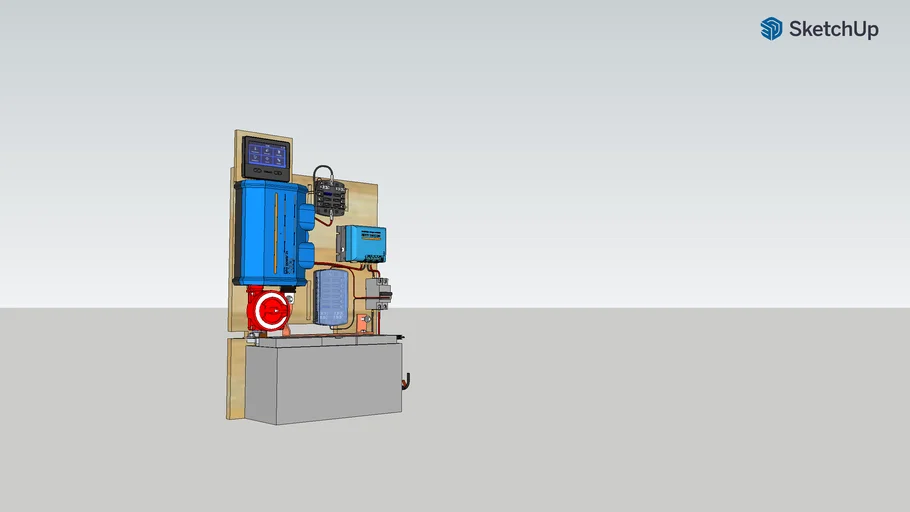

Compact solar electrical setup for a campervan involving 12V battery, switches, MPPT, fuseboxes, Lynx Power In (with removable lids). Connections are kept as short as possible, with 30x3mm copper bar bent as needed to provide the major connections. Some wires are shown with ferrules and lugs. The Y with MC4 connectors allows charging of a portable power station.
