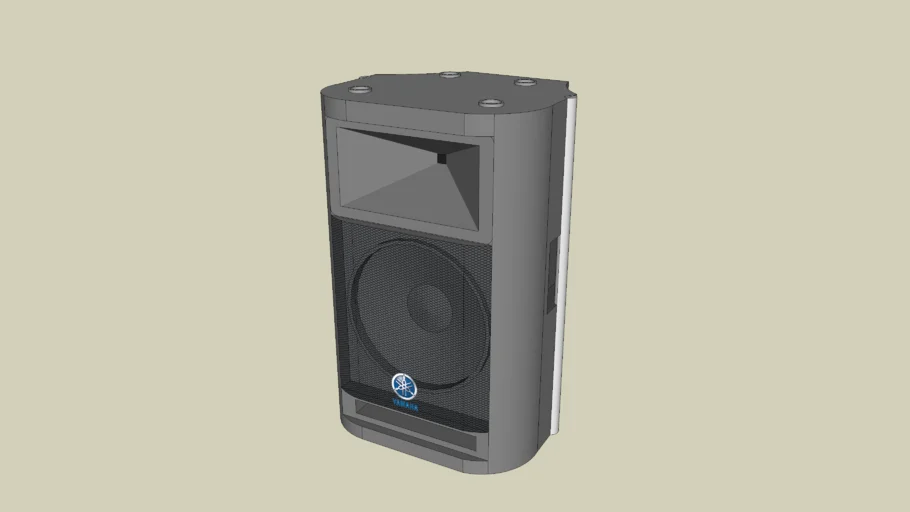

The Yamaha MSR400 Top Speaker. Max SPL 122
Type
Crossover frequency
Frequency response
Max. SPL
Dispersion
Dimensions (W x H x D)
Weight
Pole socket
Bi-amp 2-way, bass-reflex type powered speaker
1.6kHz
50Hz to 20kHz
121dB (1m)
90(H) x 40(V)
406 x 652 x 351mm (16.0" x 25.7" x 13.8")
23.0kg (50.7lbs)
35mm (1-3/8 inch) to 36mm
Enclosure
Components
Bass-reflex type
LF: 12" cone + HF: 1.75" driver
Output power
Input sensitivity, impedance
Connector (Input/Output)
(all parallel)
Control
Indicator
Power consumption 110W
LF: 225W @ 500Hz,THD = 1%, RL = 4Ω
HF: 75W @ 5kHz,THD = 1%, RL = 16Ω
MIC/LINE: -36dB/+4dB, 10kΩ
1: XLR-3-31 balanced
2: XLR-3-32 balanced
3: PHONE balanced
Level Control
EQ.LOW (+/- 3dB at 55Hz)
EQ.HIGH (+/- 3dB at HF)
Power Switch (ON/OFF)
Power: Green LED
Clipping: Red #Yamaha_Speaker_MSR400_Top
