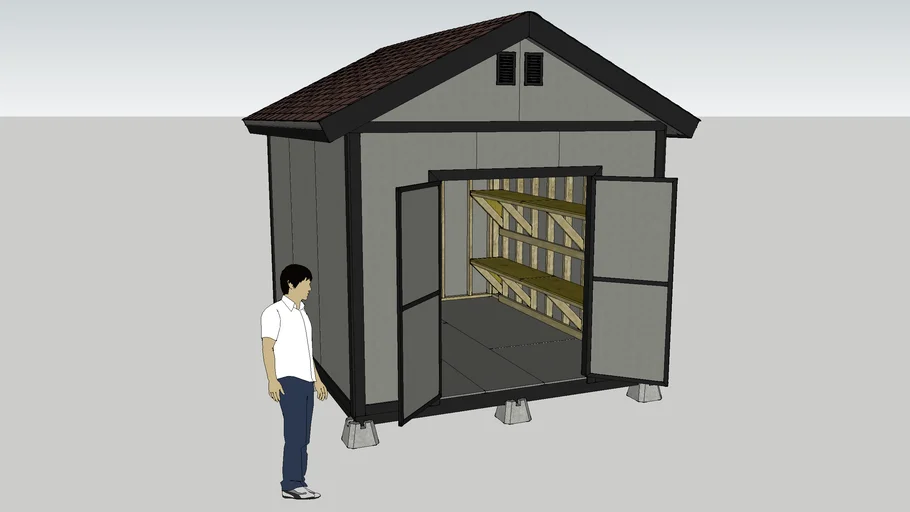

This model is for a 10' x 12' wooden storage building, built to scale. Every item is an individual component or group, and sized correctly. I've tried building it to code, and you could use this as a blueprint to build the building (which is why I made it...so I could do just that). The only things I didn't include were nails, screws, hinges, and door handles. This is the Mk. II design, with some added shelves, no ramp (I didn't have space for it), and two less Dek-Blocks. Also moved the floor joist spacers over so the edges of the plywood floor sheathing could use them to nail edges into. Latest update (5/28/2012) - Fixed door height from 6'1" to 6'5", and adjusted everything else to match. Some minor adjustments on the siding to match up with the studs. Beefed up the studs the roof beam sits upon to new design. #building #dekblock #floor #hanger #joist #rafter #ramp #roof #shed #shingle #shingles #storage #stud #studs #wall #walls #wood
