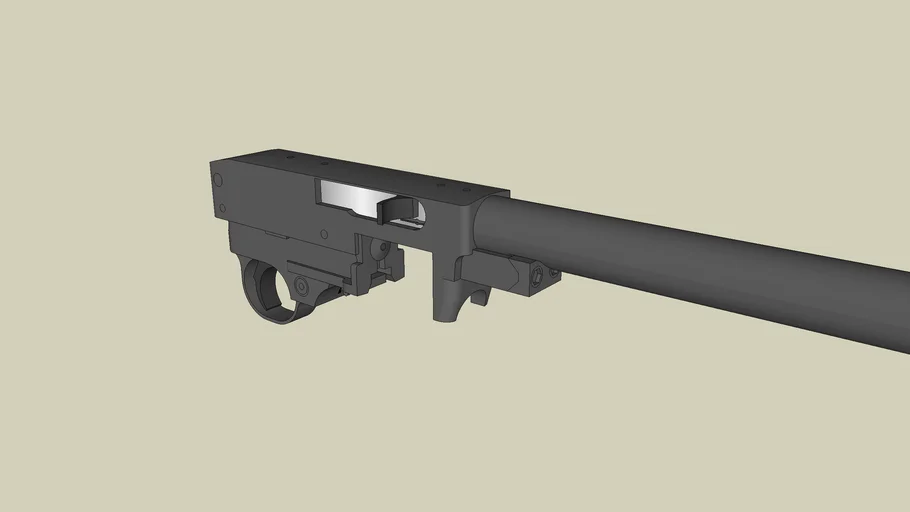

This is the barreled action for the Ruger 10/22 .22 caliber carbine. The drawing includes the receiver, bolt assembly, trigger group, and a .92" diameter, 18" long bull barrel. Measurements are quite close overall, but there may be some minor inaccuracies. This drawing is intended for use in designing stocks. #22 #1022 #22_lr #barreled_action #carbine #rifle #Ruger
