WEN 4210T Drill Press

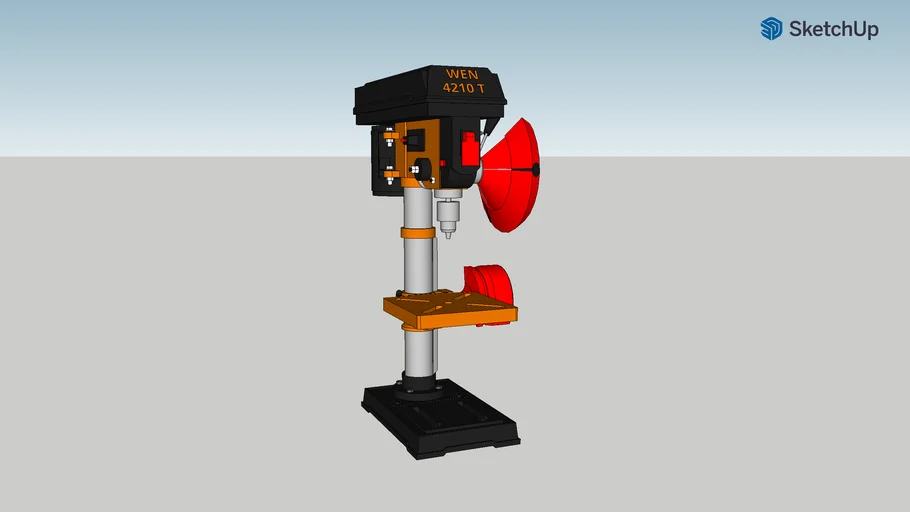

I took a few liberties with small things like shapes of switches, but the overall model is accurate to 1/32 inch. I modelled from the base up to the table and around to the drill chuck, the chuck aligned with the center hole on the table so there appears to be no stack up error. I added conical sweeps to the crank arms to help represent the clearance of the turn radii, these are grouped shapes and easily removed if unwanted. I used the model to design and build a wood table top, things are coming out fairly accurate.
I uploaded the original model on 12/18/2020. I posted a correction to the table height crank arm and conical sweep on 01/02/2021. I found (the HARD WAY!! when cutting my wood table top) the modelled arm was ~1/2 inch too long, just human error when modelling, and slightly too narrow due to play in the handle I missed when measuring.
