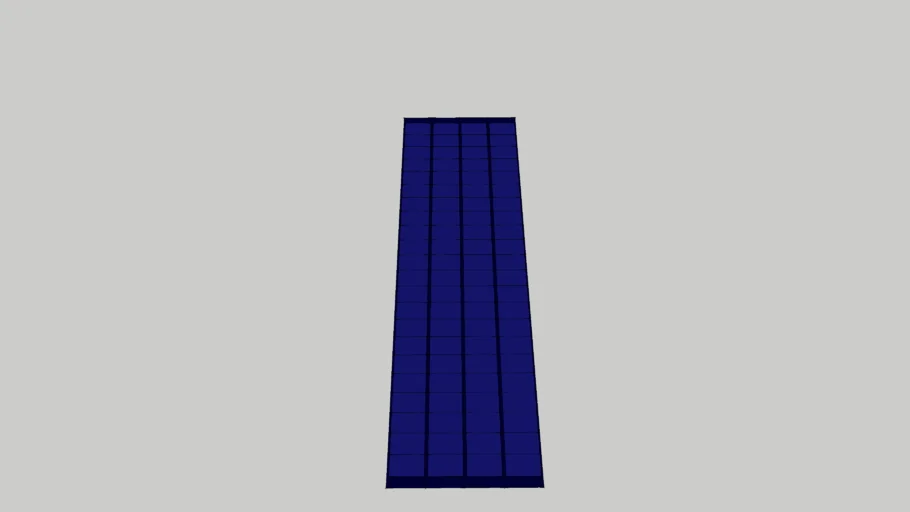

Uni-Solar PowerBond PVL -144 Roll up Solar Panel
• High Temperature and Low Light Performance
• 5-Year Limited Product Warranty
• Limited Power Output Warranty:
92% at 10 years, 84% at 20 years, 80% at 25 years (of minimum power)
• Quick-Connect Terminals and Adhesive Backing
• Bypass Diodes for Shadow Tolerance
Performance Characteristics
Rated Power (Pmax): 144 Wp
Production Pmax Tolerance: ± 5 %
Construction Characteristics
Dimensions: Length: 5486 mm (216”), Width: 394 mm (15.5”), Depth: 4 mm (0.2”),
16 mm (0.6”) including potted terminal housing assembly
Weight: 7.7 kg (17.0 lbs)
Output Cables: 4 mm2
(12 AWG) cable with weatherproof DC-rated quick-connect terminals
560 mm (22“) length
Bypass Diodes: Connected across every solar cell
Encapsulation: Durable ETFE high light-transmissive polymer
Adhesive: Ethylene propylene copolymer adhesive sealant with microbial inhibitor
Cell Type: 22 triple junction amorphous silicon solar cells 356 mm x 239 mm
(14” x 9.4”) connected in series
Application Criteria*
• Installation temperature between 10 °C - 40 °C (50 °F - 100 °F)
• Maximum roof temperature: 85 °C (185 °F)
• Minimum slope: 3° (1/2:12)
• Maximum slope: 60° (21:12)
• Approved substrates include certain membrane and metal roofing products.
See United Solar for details #PowerBond_PVL_144 #Roll_up_Solar_Panel #Solar_Panel #UniSolar
