Features
Wide range consisting of modular units of metal distribution boards up to 24 kV, easily adaptable to any specific need:
• with fixed or withdrawable circuit-breakers, SF6 or vacuum interruption technology, automatic circuit-breakers, contactor and disconnector;
• rated current of 630, 800 and 1250 A;
• short-circuit current up to 25 kA;
• internal arc withstand;
Control, monitoring and protection devices that provide installation protection, power continuity and reduced downtime:
• Sepam and Easergy P relays;
• Easergy T200S and T300 remote control interface;
• Flair fault detector.
Benefits

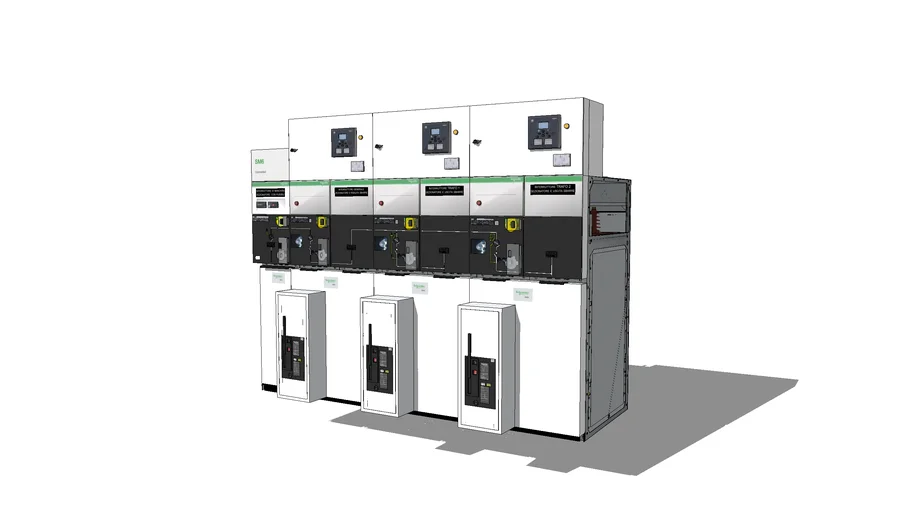

The SM6 range is a complete and extendable offering of highly reliable modular air-insulated units for all MV secondary distribution applications. Combining flexibility and simplicity of installation and operation, the SM6 range is a concentrate of Merlin Gerin know-how.
Applications
• MV section in MV / LV transformation substations in distribution systems;
• MV consumer or distribution
