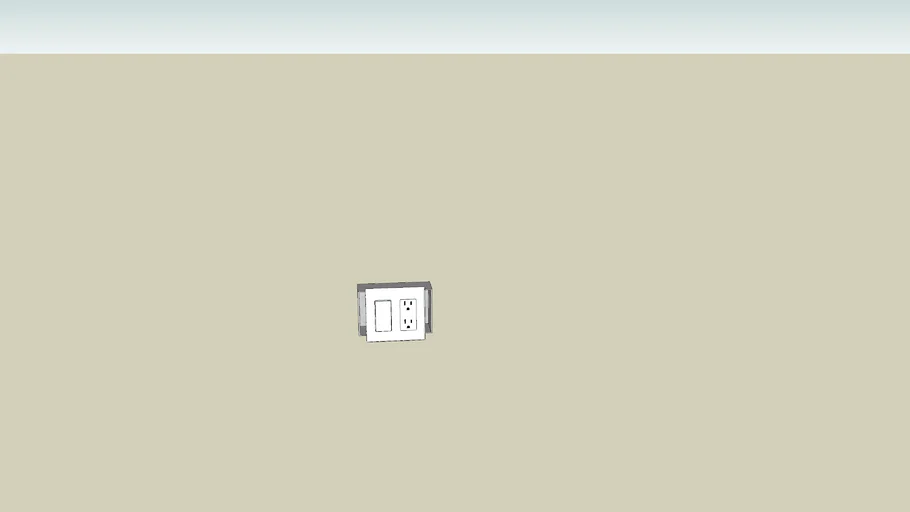

Dynamic Component- Specify how many gangs and which receptacles/switches to use. Will show as both a 3D (elevation views) and in 2D (plan views). Will generate reports for materials take off. Is designed to have boxes oversized with mud-ring reducers to make electricians lives easier. Specify Old Work or New Work for remodel or new construction and box type. NOTE: There is a tag called "Guide Geometry" that can be placed on a model footprint to help you set the height of the placement.
