Punggol Residences Premium Flat

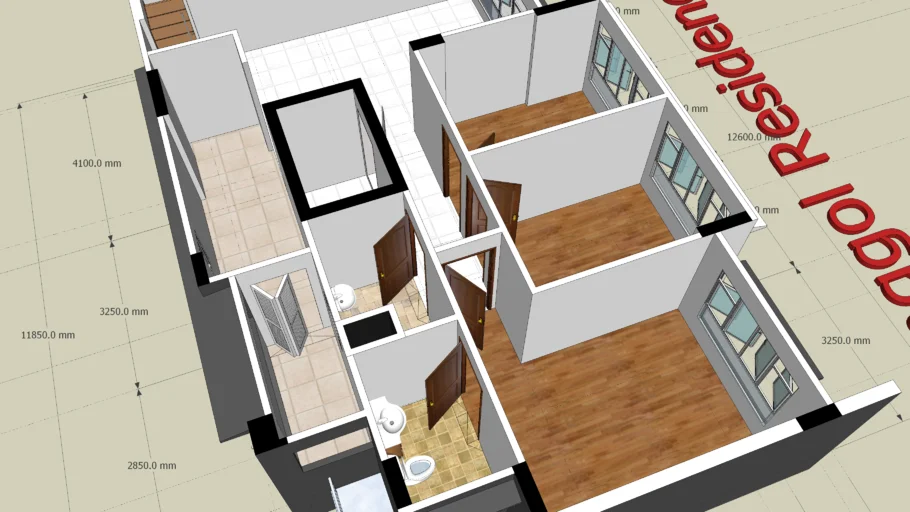

4 Room Apartment Type - 1F (Blocks 271A & 271C, units #507, #515 & #535)
Dimensions are exact, according to floorplan provided by HDB. Only those measurements not provided in the original floorplan are estimates. Heights and widths of windows and doors are also estimated. Internal wall height is 2500mm. Doors and toilet seat covers can be opened/closed using layers. Guide lines have been left in, but can be easily deleted by clicking Edit-->Delete Guides.
This model is Geo-Located, so it can be viewed in Google Earth. Placement in Google Earth is only for unit #507 in Blk 271A, and the placement has probably about 90-95% accuracy. The thickness of the floor is thicker than normal, and it is higher on one side compared to the other. This is to facilitate placement in Google Earth, since Punggol Residences is sited on an incline. Internal floor however, is level throughout. Feel free to delete away the excess if not placing in Google Earth.
To download Google Earth Image Overlays for Punggol BTOs: http://www.box.net/shared/uu2g4ee51z #4_room #4rm #BTO #flat #floorplan #HDB #premium #Punggol #Punggol_Residences #Punggol_Walk #Singapore
