DIY Homemade DAB+ Aerial for indoor use.
Use about 1 meter of 75-Ohm C12 coax (6.6mm outer diameter, 4.4mm shield diameter, 2.3mm core diameter)
First bare 300mm of the core copper-wire;
Next bare 230mm of the shield and braid;
Tape the end of the braid to keep it from unbraiding. While at it, you might also (for aesthetics) tape the entire braided shield section. Use an isolating type of tape... i.e. electrical tape.

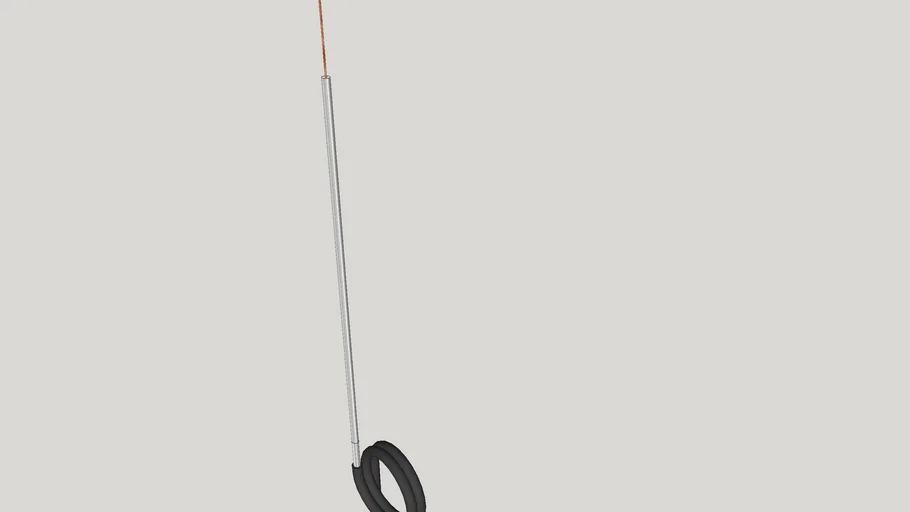

Then make a dual loop with a 50mm radius and tape or zip-tie it in place.
Finally attach a connector to start receiving Digital Broadcasted Radio (DAB+) on your receiver. In this model I used an IEC-compliant UHF RF-connector. More likely you'll end up using a C-12 (7mm coax cable) F-connector on your setup.
Feel free to use this design, be creative and build it for real, It's not my design, so credits don't goto me... Instead, credits goto https://www.radioandtelly.co.uk/cgi-bin/forum/YaBB.pl?num=1290144230
