Cisco Catalyst 2924 XL rackmount network switch

Cisco Catalyst 2924 XL rackmount network switch

BjornRoesbeke

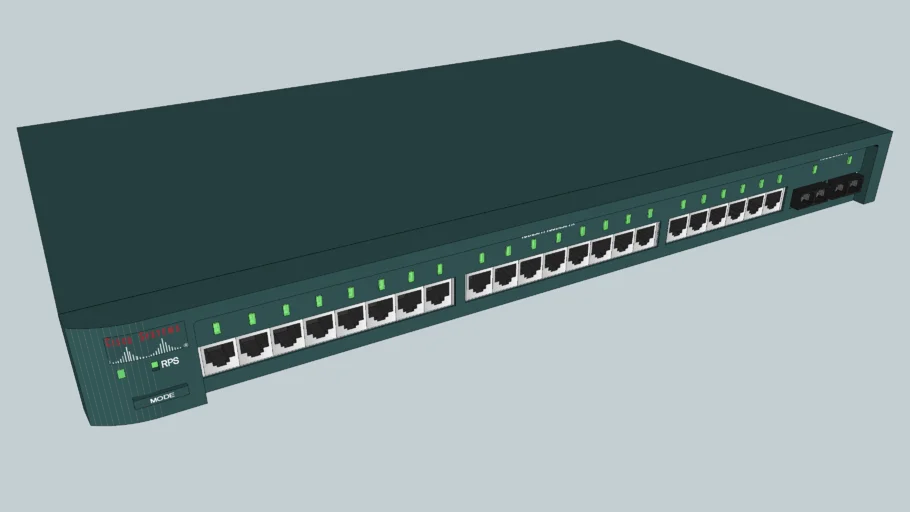

19" rackmountable 1U network switch from Cisco Systems. Not perfect but i've added as many details as possible, i even drew internal components (but not very accurate). STILL TO CORRECT: - Height is slightly larger than 1U - Add mount brackets - Find out who drew these components: -- Front RJ-45 bus -- Fan blades (resized from other model) -- IEC power connector -- Power connector for RPS THIS MODEL LACKS: - Status indicator LEDs on the left - Indents on the left side - Numbers and model number on the front - Some screws #catalyst #Cisco #network #rackmount #switch
