Application purpose:
- For automatic flush actuation of urinals
- For Geberit frames for urinal with front actuation
- For installation in installation sets for Geberit urinal flush controls (from year of manufacture 2009)
Characteristics:
- Cover plate with securing bar
- Reliable IR distance detection
- Infrared user detection with background fade-out
- Water-saving hybrid mode can be set
- Flush time can be set
- Flush time can be set manually
- Adjustable interval flush
- Dynamic flushing time adjustment
- Pre-flush can be set
- Can be switched to operation with covered urinal
- Power supply via mains connection
- Ready for operation upon connection to mains
- Power supply unit with LED display
- Power failure control unit
- Valve-closing function when power fails
- One-time flush after activation of the power supply
- Functions can be set and queried with the Geberit Service Handy
- Flush actuation can be deactivated via Geberit Clean Handy
- Flush volume can be reduced to 0.5 l per flush with regulating screw of installation set
- Tap group II in accordance with DIN 4109
Technical data:
- Protection degreeIP45
- Nominal voltage110-240 V AC
- Mains frequency50-60 Hz
- Operating voltage4.5 V DC
- Power consumption< 0.5 W
- Flow pressure1-8 bar
- Minimum flow pressure1 bar
- Maximum test pressure, water16 bar
- Maximum test pressure, air / inert gas3 bar
- Relative humidity< 100 %
- Maximum operating temperature, water30 °C
- Flow rate at 1 bar without flow limiter0.3 l/s
- Flow rate at 1 bar with flow limiter0.24 l/s
- Calculated flow rate0.3 l/s
- Interval flush, adjustment range1-168 h
- Interval flush, factory setting24 h
- Interval flush time, adjustment range3-180 s
- Detection time, adjustment range3-15 s
- Detection time, factory setting7 s
- Flush time, adjustment range3-15 s
- Flush time, factory setting4 s
Scope of delivery:
- Cover plate type 10 with IR window
- Infrared control, pre-mounted on mounting frame
- Solenoid valve
- Power supply unit
- Fastening material

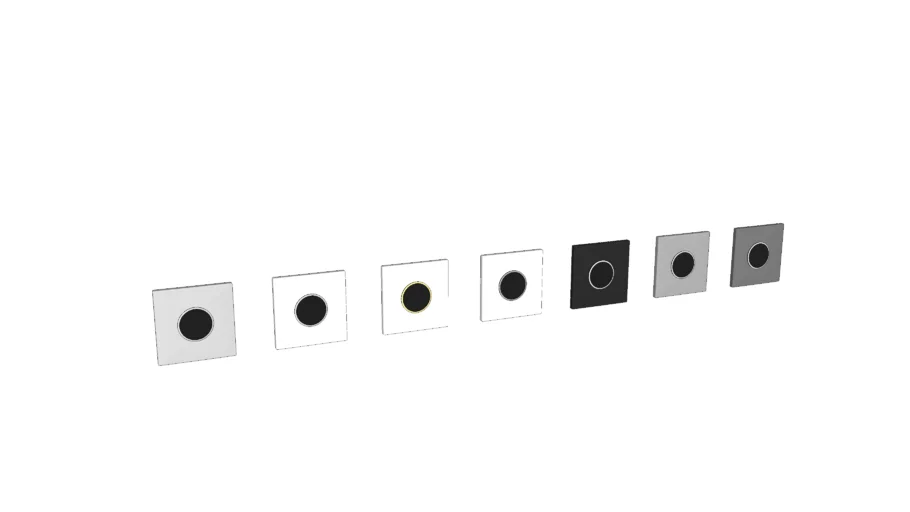

Article:
116.025.KH.1 gloss chrome / matt chrome / gloss chrome
116.025.KJ.1 white / gloss chrome / white
116.025.KK.1 white / gold-plated / white
116.025.KL.1 white / matt chrome / matt chrome
116.025.KM.1 black / bright chrome / black
116.025.KN.1 matt chrome / gloss chrome / matt chrome
116.025.SN.1 stainless steel brushed/polished/brushed
