uPVC / Aluminum Profiles for windows and doors and 30 [mm] thick glazing.
The fixed frame is 75 [mm] thick.
The openable frame is 70 [mm] by itself but protrudes 15 [mm] from the fixed one (total depth - 90 [mm).
Based on REHAU uPVC windows/doors.

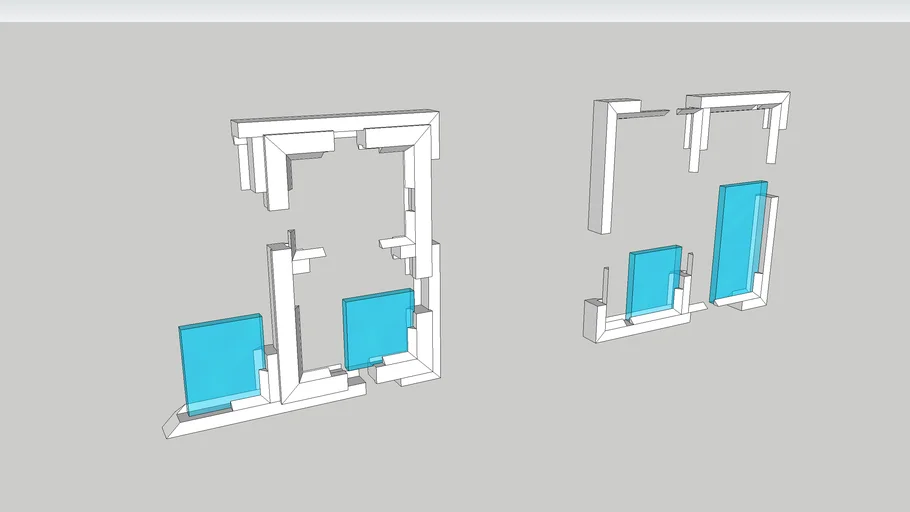

Fixed frame for non-openable windows + divider and glazing trims.
Window/Door frame which fits the fixed one + divider and trims.
All parts are separate groups so you can adjust them to your specs.
