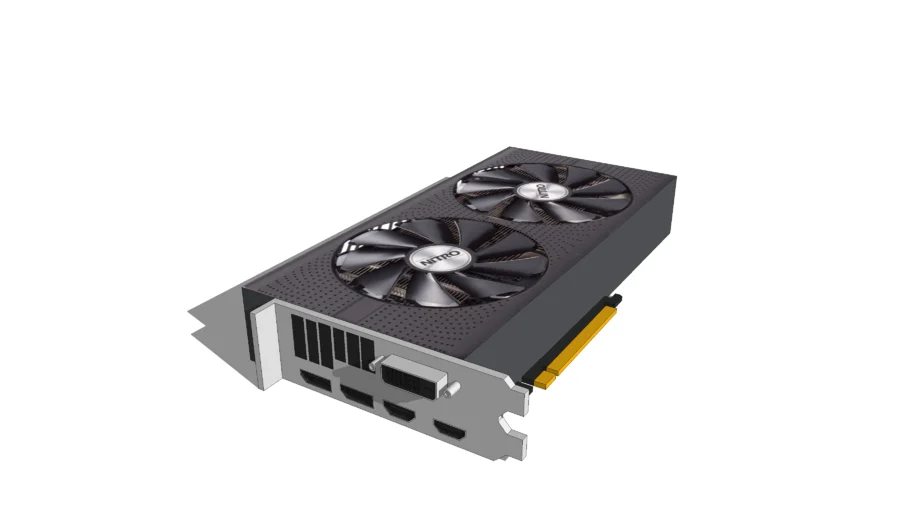

SAPPHIRE NITRO+ Radeon™ RX 470 8 GB GPU
2048 stream Processors
14 nm FinFET
4th generation Graphics Core Next (GCN)
Up to 1260 MHz Engine Boost Clock
1121 MHz Engine Base Clock
Interface
PCI-Express 3.0
Memory
256 bit Memory Bus
GDDR5 Memory Type
2000 MHz Memory Clock
8192 MB Size
Displays
Maximum 4 Outputs
Output
1x DL-DVI-D
2x HDMI 2.0b
2x DisplayPort 1.4
API
OpenGL® 4.5
OpenCL 2.0
DirectX® 12
Vulkan™ 1.0
Shader Model 5.1
Feature
AMD CrossFire (bridgeless)
AMD PowerTune
AMD ZeroCore Power Technology
AMD FreeSync Technology
AMD Eyefinity
AMD Tress FX technology
AMD Liquid VR technology
AMD TrueAudio Next technology
AMD HD3D Technology
Universal Video Decoder (UVD)
XConnect™ technology
Dolby® TrueHD and DTS-HD Master Audio™ Support
High Dynamic Range (HDR) support
16K Hours Capacitor
Black Diamond 4 Chokes
Intelligent Fan Control III
10 mm Heat Pipe
Dual BIOS
NITRO Glow RGB LED lights
NITRO Boost
VR Friendly
Cooling
Dual-X 95 mm fans
Two ball bearing
NITRO Free Flow redesigned airflow
NITRO FanSafe and Fan Health Check
SAPPHIRE Fan Service
SAPPHIRE Quick Connect system
Form Factor
2 Slots Occupied, ATX
240 X 120 X 42 Dimension /mm
Power Consumption
175W
OS Windows 10Windows 8/8.1Windows 7 System Requirement
500 Watt Power Supply (Suggestion)
1 x 8-pin AUX Power Connector
CD-ROM or DVD-ROM drive for installing software
