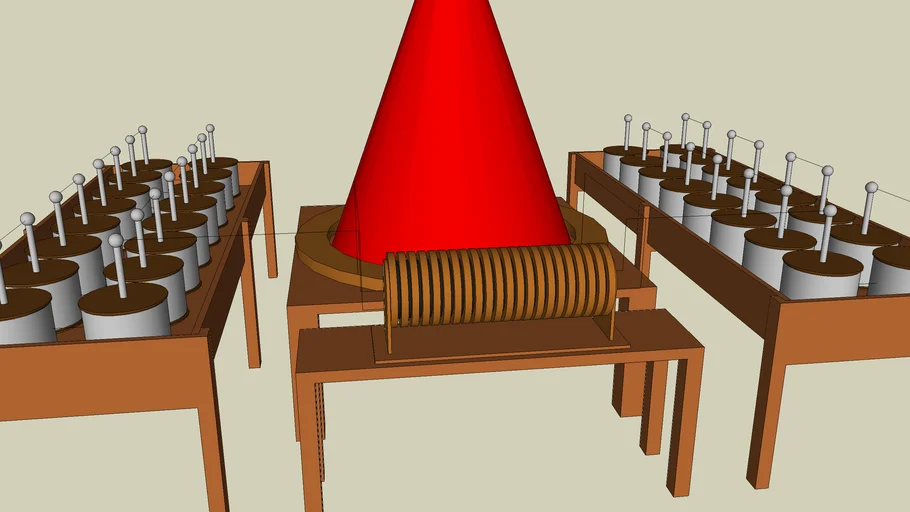

This is one of Tesla's older, more cumbersome coil designs, using two banks of 16 leydan jars and a quenched spark gap made of 22 copper rings. The primary coil is a flat spiral, and the secondary is conical. Based on this picture: http://www.pbs.org/tesla/ins/tcpop03.html #air #coil #conical #core #gap #jar #leydan #quenched #resonant #spark #Tesla #transformer
