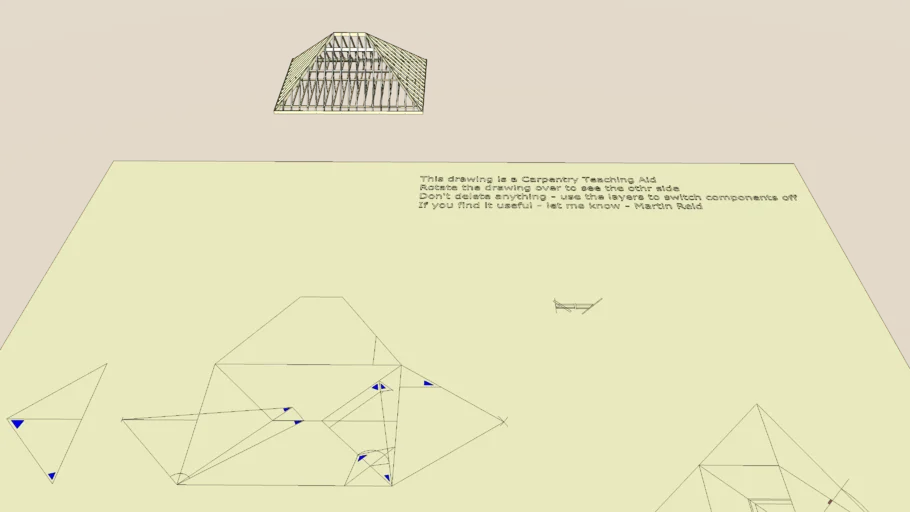

For use by UK Construction Teachers and Students to develop understanding of pitched roofing geometry. It includes a fully detailed pitched roof for a small garage. Each element is layered and can be turned on and off allowing close inspection of the true lengths and bevels for the individual roofing members. The model includes the 2D geometric setting out of the true lengths and bevels with the underside of the 'drawing paper' used to show extra 3D developments which aid the understanding of the 2D work produced in a classroom. #1st_Diploma_Assignment #Carpentry #ceiling_joists #College #common_rafter #Construction #Construction_Process #Doors #eaves_detail #facia_board #hip_rafter #Hipped #jack_rafter #Joinery #Martin_Reid #Pattern_rafter #purlin #ridge #Roof #Small_Single_Garage #soffit_board #Student #Substructure #superstructure #tile_battens #Traditional #Wall_plate #Windows
