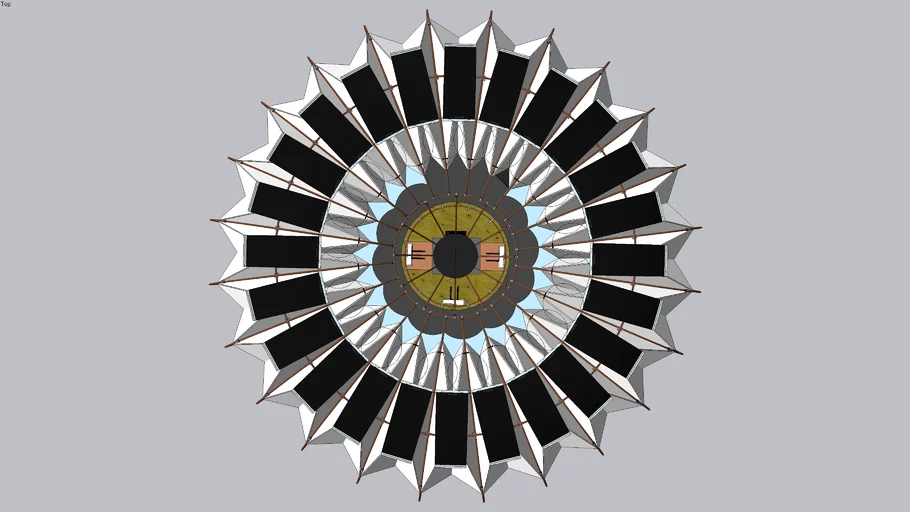

This is a full-detail open-source model my the solar powered art installation "Overview" as installed at SOAK festival in May 2023. The structure is 25' in diameter, and generates 6-8+ kilowatt-hours of solar electricity a day in full sun.
This model is accurate to less than an 1", and shows all the critical parts and materials needed to build the structure.
It also includes all the arc-lengths and radii I used to bend the metal beams as cheat sheet. Each beam is made out of 1" OD 0.065 wall mild steel.
You can learn more about this project (for free) at: Patreon[dot]com/disruptivelyuseful.
Enjoy!
