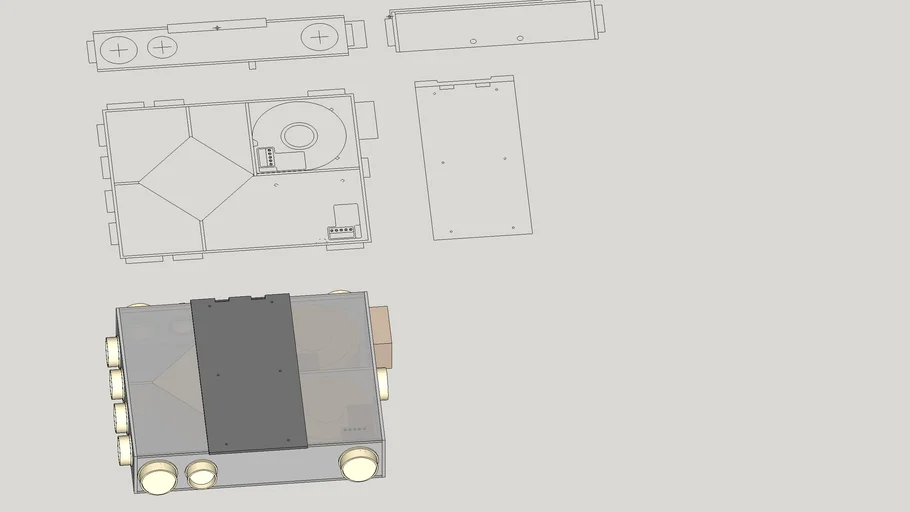

A quick model of an Opus Xbox fan coil unit. This model is twin fan with no heating or chilled pipework connections.
Create an object from dimensioned picture.
Lesson plan preparation excercises.
Unlike the earlier solids excercises, these Advanced Lessons are
for multi-component assemblies.
The goal is to end up with solid components.
#BvN #coil #components #fan #FCU #Opus #Pahiatua #solid_shapes #the_Academy #unit #xbox
