Application purpose:
- For convenient and odourless toilet use
- For gently cleaning the anal and vaginal areas with water
Characteristics:
- Hybrid hot water system with continuous flow heater and storage water heater
- Anal shower with double-nozzle WhirlSpray shower technology
- Separate Lady shower nozzle in protected park position
- Adjustable shower water temperature
- Spray intensity can be set to five different levels
- Spray arm can be set to five different positions
- Adjustable oscillating spray (automatic forward and reverse motion of the spray arm)
- Automatic pre- and post-rinsing of the spray nozzle with fresh water
- Descaling programme
- Rimless WC ceramic appliance featuring TurboFlush flush technology
- Washdown WC with dirt-repellent ceramic surface
- User detection
- Odour extraction with ceramic honey comb filter can be activated
- Odour extraction unit with run-on function
- Dryer can be activated
- Dryer arm can be extended
- Adjustable dryer temperature
- WC seat and WC lid with SoftClosing
- WC lid with SoftOpening
- Functions and settings via remote control
- Four user profiles can be programmed
- Water supply connection on the left, hidden behind the WC ceramic
- Mains connection with flexible three-wire sheathed cable, on the right side, hidden behind the WC ceramic
- External water supply connection on the left possible with accessories
- External mains connection with power outlet on the right possible
- Pre-mounted sound insulation
- Approval in accordance with (DIN) EN 1717 / (DIN) EN 13077
Technical data:
- Protection class - I
- Protection degree - IPX4
- Nominal voltage - 230 V AC
- Mains frequency - 50 Hz
- Power consumption - 2000 W
- Power consumption standby - ≤ 0.5 W
- Flow pressure - 0.5–10 bar
- Operating temperature - 5–40 °C
- Water temperature, adjustment range - 34–40 °C
- Calculated flow rate - 0.03 l/s
- Minimum flow pressure for calculated flow rate - 0.5 bar
- Spray time - 30–50 s
- Maximum load WC seat - 150 kg
Scope of delivery:
- Water supply connection set for Geberit Sigma concealed cistern 12 cm and Geberit Omega concealed cistern 12 cm
- Female socket for mains connection
- Spray shield
- Descaling agent, 125 ml
- Cleaning set
- Connection set for WC, ø 90 mm
- Remote control with wall-mounted case and battery CR2032
- Fastening material
Articles:

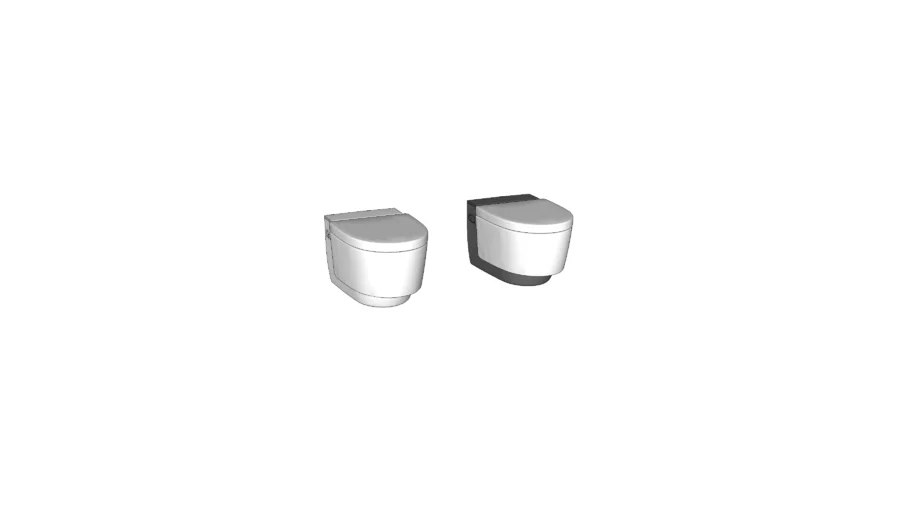

- 146.200.11.1 white alpine
- 146.200.21.1 gloss chrome-plated
