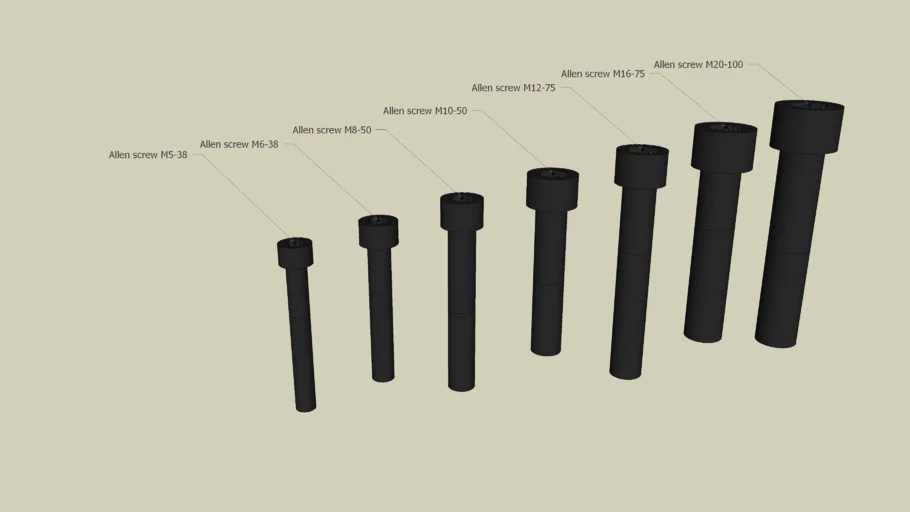

These are metric Allen screws of various sizes, all in scaled nominal dimension. Minor details such as fillet and chamfer are omitted to save computing time. Push/pull to adjust its grip length and thread length. Each end has center point to guide you during assembly to other parts.
Courtesy of PT LIMOV POWER STRUCTURE. #allen_screw #LIMOV #mechanical #metric
