This is a dynamic component
Open components attributes
You can choose a chain type 1 t/m 9
1 = "3/8 x 7/32 (06B-?)"
2 = "1/2 x 5/16 (08B-?)"
3 = "5/8 x 3/8 (10B-?)"
4 = "3/4 x 1/2 (12B-?)"
5 = "1 x 17 (16B-?)"
6 = "1 1/4 x 3/4 (20B-?)"
7 = "1 1/2 x 1 (24B-?)"
8 = "1 3/4 x 1 (28B-?)"
9 = "2 x 1 1/4 (32B-?)")
You have to fill in the number of teeth: Z=?
Center the drawing

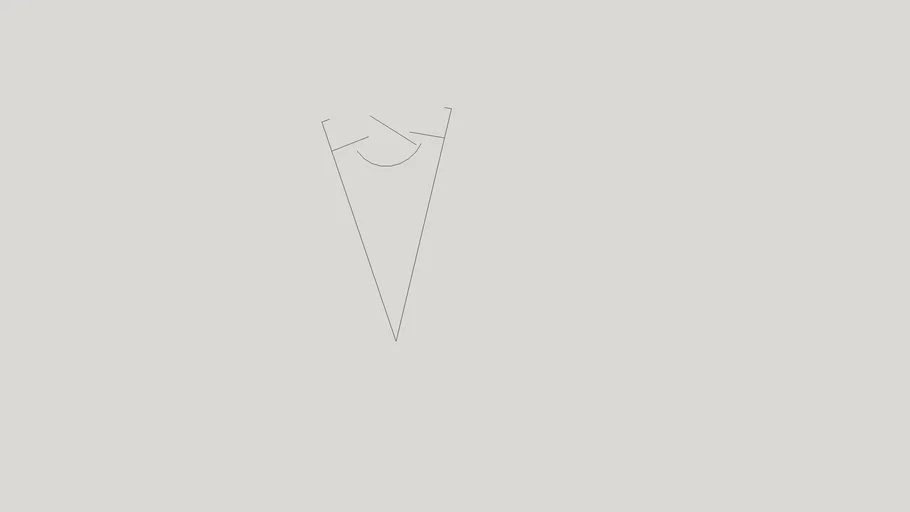

Then you have to explode everything (in several steps)
Then complete the segment with two additional lines as shown in the video
Wenn the surface is not closed you haven't explode everything
Delete the overlength of two lines
Rotate copy this segment Z-1 times
Delete the lines in the center
Close the surface with a temporary line
Make the thickness with push/pull
The thickness is prefilled with a line length
There is a instructionvideo on youtube
https://www.youtube.com/watch?v=C2gacFOT344
