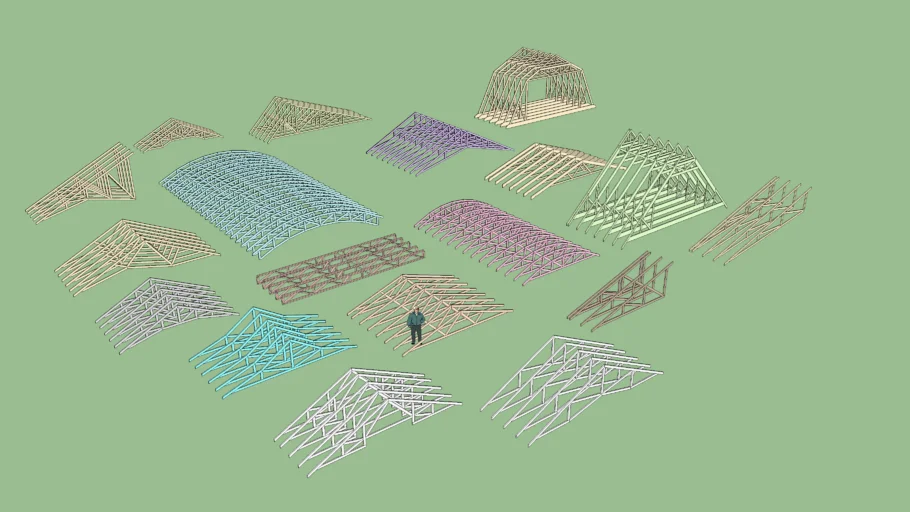

Eighteen different truss profiles currently available within the Medeek Truss Plugin:
- Common
- Monopitch
- Attic
- Scissor
- Tail Bearing
- Dual Pitch
- Bowstring
- Bow Barrel
- Polynesian
- Cambered
- Cathedral
- Tray
- Mono Scissor
- Mono Cathedral
- Gambrel Attic
- Coffer
- Symmetric Cathedral
- Floor (System 42)
View tutorial here:
<a href="https://youtu.be/1WqGkK15zYA">Medeek Truss Plugin Tutorial 1</a>
Follow the development of the Plugin:
<a href="http://forums.sketchup.com/t/truss-plugin-extension/16452/285">SketchUp Extensions Forum</a>
Download the Plugin here:
<a href="http://design.medeek.com/resources/medeektrussplugin.html">Medeek Truss Plugin</a>
#attic #bowstring #common #gambrel #monopitch #polynesian #scissor #trusses
