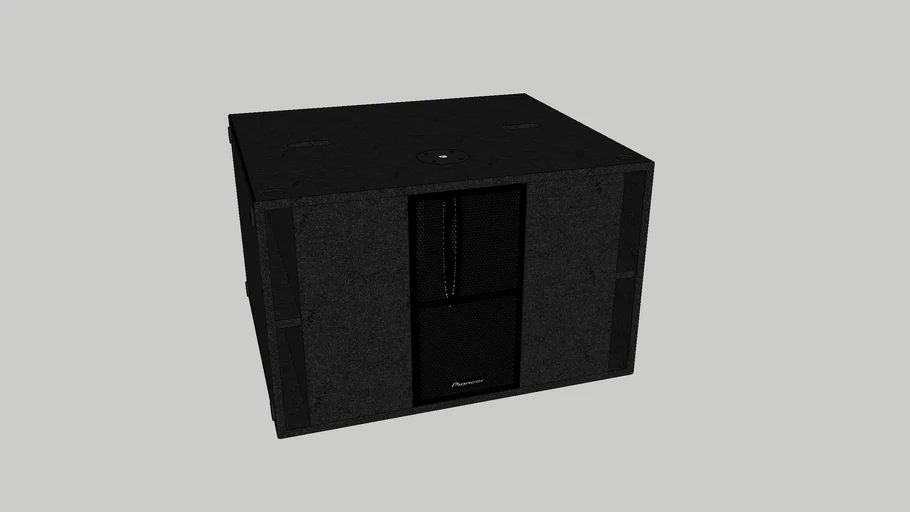

Specification of XY-215S
Enclosure Type: Dual driver, quasi-bandpass subwoofer
Frequency Response: 42 Hz to 160 Hz
Sensitivity (1 W/1 m): 102 dB (half space)
Nominal Impedance: 4 Ω
Power Handling: 800 W RMS, 1600 W Program
Maximum SPL: 131 dB cont., 137 dB peak (half space)
Dispersion-
Driver Configuration: 2 × 15 inch (380 mm) LF cone drivers
Crossover-
Connectors: 2 × Neutrik SpeakON™ NL4
Dimensions (W×H×D):
831 × 526 × 700 mm
(32.7 × 20.7 × 27.6-inch)
Weight: 71 kg (156.6 lbs)
Rigging and Hardware:
4 × flush handles,
2 × M20 polemount sockets for mid/high enclosures,
8 × rubber feet (bottom and left) and 4 ×mating recesses (top),
16 × M8 holes with pre-inserted bolts for 4 × castors on rear
Grille: Hex punched steel
Enclosure: 18 mm (0.7-inch) birch plywood
Finish: Impact-resistant, Black semi-matt textured
Suggested Power Amplifier:
Recommended : K3DSP
Minimum : K2DSP
Accessories: 2 x polemount socket cover
(-W model only)
