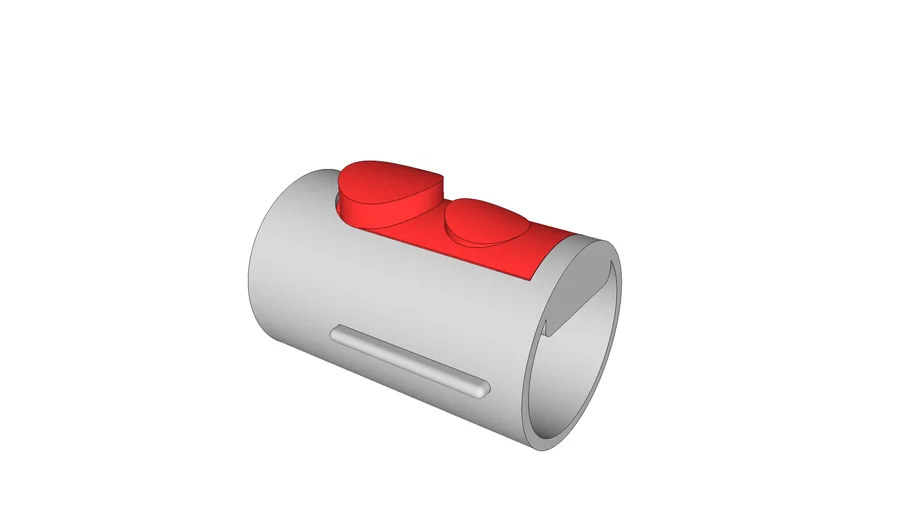

A 3D printer optimised model for the Dyson range of handheld vacuum cleaners (V7, V8, V10), which allows you to design an adapter to fit almost any tool. The switch and body click together, all you need to add is a spring (0.6mm wire, OD 10mm uncompressed length 17mm ~3 working coils) for the release button to function. This model has been 3D printed (@100% infill) and works.
Note that this model is drawn at 1000x scale (mm -> m) to avoid Sketchup issues with small triangles. Be aware of this when slicing for your 3D printer!
