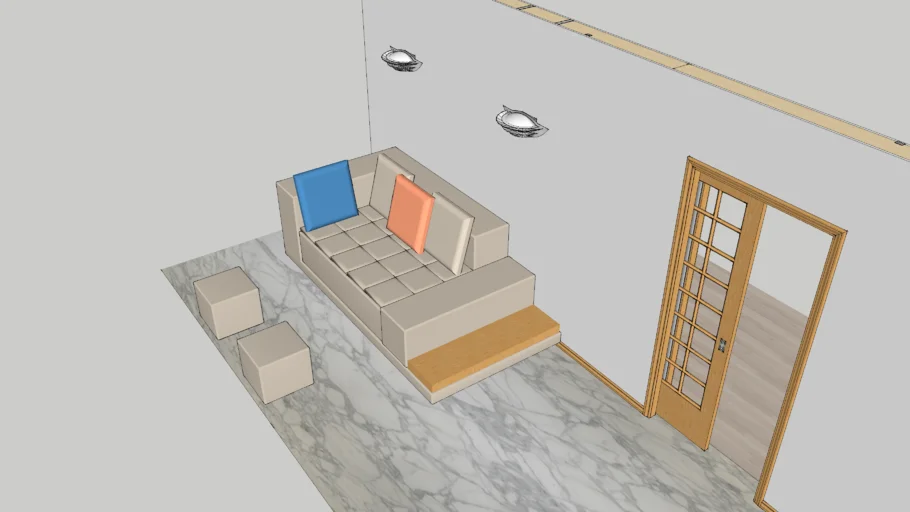

I got tired of seeing just parts of how things come together or just a pretty picture when I looked up a pocket door. Everyone seemed to have only a door with no details or the mechanics of how it really is. I figured perhaps I should develop a drawing with the mechanics of the real thing and include everything not just another pretty vague picture. This is a full blown wall section featuring: a 3'-0" x 6'-8" Shoji styled pocket door with electrochromic glass, Simpson Strong Tie Connectors, Johnson Hardware (pocket door framing), Timbron TIM 356 Moulding, Eurostone Marble Slab Flooring, Khars Wood Flooring, Louis Poulsen Oslo Wall Sconces, and a Low Wave Modern Leather Sofa / Chaise Lounge by Gamma International. No one else shows accurate sections of their smart glass or electrochromic glass in their sliding doors. If you want my design for it you will have to pay for it. I tried to get it as close to the real thing as it gets minus drawing the nails. I can't add much more to this with out fighting the file size limitations so I have stopped working on this. If you are a professional please let me know if you notice anything I possibly missed or if you have work for me. I really need work. Thanks. #Door #Door_Framing #Door_jamb #Johnson_Hardware #Pocket_Door #Section #Simpson_Strong_Tie #Sliding_Door #Wall_Section
