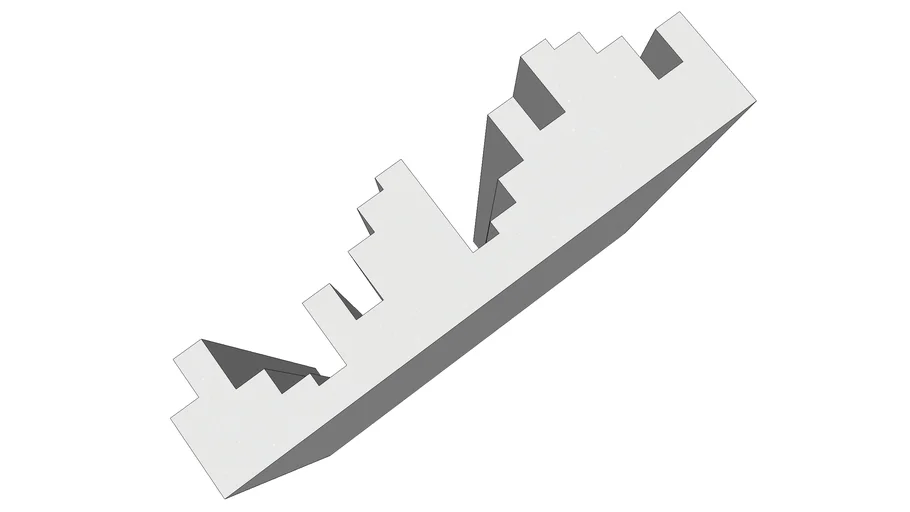

Acoustic Diffuser EliAcoustic Fuser 2D, is made of high density EPS. This acoustic diffuser acts in a two-dimensional field and is capable of controlling sound reflections in space-time domain with its geometric design with large depth.
Its geometry allows sound wave fronts reflected between the walls of the diffuser cavity, causing the reflection of the same at different angles and departure times.
Acoustic Diffuser EliAcoustic Fuser 2D is designed to operate in the frequency range between 630 Hz and 10,000 Hz.
Its scalable design allows a large diffuser formed from the union of several EliAcoustic Fuser diffusers 2D. Changing its position (turn 180), you can create different random sequences that will increase the dissemination of the room using the same acoustic diffuser.
It is even possible to form a large three-dimensional diffuser, positioning diffusers other vertically and horizontally, the diffusers 90 rotating about its center.
General Characteristics:
Dimensions of each panel: 595.0 x 595.0 x 166.3 mm
Tear resistance: no
Washable: if
Reaction to fire: EuroClass F
Sound Absorption: Low
Acoustic Diffusion: High
Possibility of combinations to form a larger diffuser
Applications:
Rooms hi-end audio
Home-cinemas
Rooms broadcasting
Recording studios and mastering
Conference rooms
Auditoriums
Packing
Units/box: 2 units
Box Dimensions: 610 x 610 x 220 mm
Description of Materials
Material: expanded polystyrene (EPS)
Density: 30 kg / m3
Installation
Easy to install
Location: roof and walls
Mounting type: Thread
