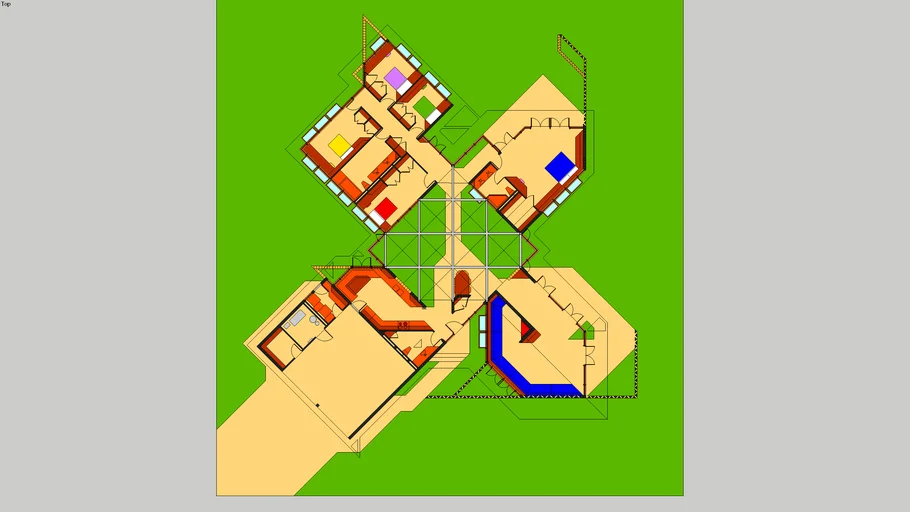

This is another 2D plan of a house utilizing the 45-degree bevel concrete blocks. This house takes the indoor garden concept and amplifies it with a central garden area enclosed by a roof composed entirely of pyramidal skylights on a steel framework. The framework will also need to support lighting and drainage systems as well as a means to deploy motorized sunshades over the dining area.
The garden area divides the house into four separate pavilions, each open to the central garden. These four wings are the Kitchen-Service-Garage wing at lower left, the Living Room at lower right, the bedroom wing at upper left, and the Master Bedroom suite at upper right. The Living Room opens to a terrace kept private by a bevel block garden wall. The Master Bedroom also has a garden wall for privacy.
The Living Room has a cathedral gable roof. All other roofs are slightly angled flat roofs.
