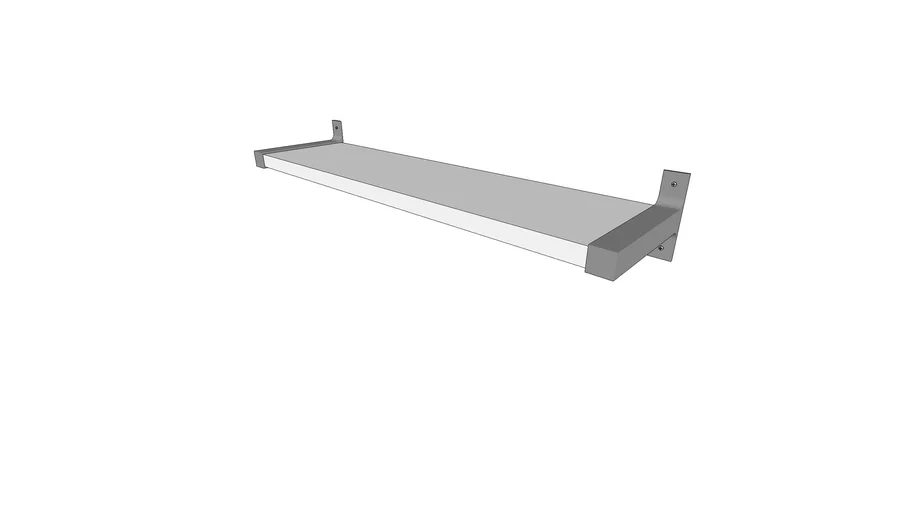

modeled form the actual item
shelf is 30 1/2" wide x 7 1/2" deep x 1" tall
brackets add 1/2" in overall width (total of 31"), brackets are 1 1/4" wide and the mounting flange is 4 3/4" tall
