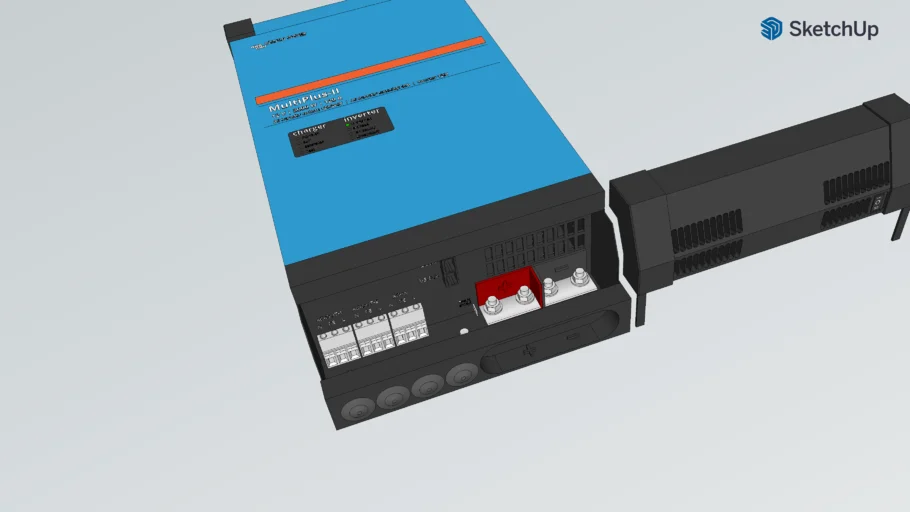

Device used in campervans / motorhomes to manage AC power use. Drawing is loosely based on the dimensions found here:
https://www.victronenergy.com/upload/documents/MultiPlus-II-12V-3000VA-230Vac.pdf
Also modified to match unit purchased Nov 2023 and include some of the more important connections underneath.
