Case needs a bit dremeling:
- 5.25" support bar needs to be cut open from motherboard side almost completely
- 120mm hole to roof, I left enough fan spacing for power supply cable routing. (Actually used wrong online cutout paper but heck, doesn't make it any less better)
Using following components:
- 3x 120mm AIO 25mm thick radiators! (Clearance issues with copper 30mm otherwise!)
- 2x AIO block & water pumps in series (repurposing, there is room for a small pump between resevoir and front 120mm)
- Alphacool single bay 5.25" rev 2 (short)
- Made tubing plans with 10mm rigid tubing, I am going to use flexible 1/4" ID and 3/8" OD tubing (6.4mm/9.6mm)
- Able to use strange ITX boards
- Able to use full length VGA cards
- Able to use 4x 3.5" HDD's
- Able to use single 2.5" HDD/SSD
- Able to use regular ATX PSU (full modular is ideal with less than 150mm length)

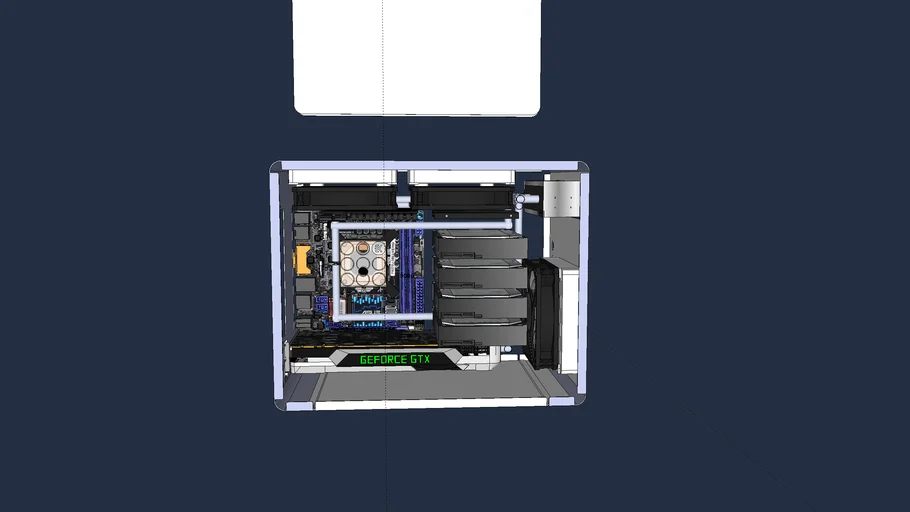

Using shared warehouse models to model the case and components, I have no rights for them!
2.5" SSD: https://3dwarehouse.sketchup.com/model.html?id=e08eff5c-be67-456b-b68e-97aac0983372
3.5" HDD https://3dwarehouse.sketchup.com/model.html?id=5f2392ee9923e4f2e0ef4810ec8be0d
5.25" Bay: https://3dwarehouse.sketchup.com/model.html?id=5acdfef9e5483352e0ef4810ec8be0d
Lian Li case: https://3dwarehouse.sketchup.com/model.html?id=5587042a4c91086fe060d9377bfb22da
Motherboard: https://3dwarehouse.sketchup.com/model.html?id=d54e49cff93909916d8b7ab7de90a512
VGA card: https://3dwarehouse.sketchup.com/model.html?id=9cda0e5130255360fe96ea0860283ff8
FAN: https://3dwarehouse.sketchup.com/model.html?id=u5139c136-537c-4abe-9e22-a601ac76a8e3
Radiator: https://3dwarehouse.sketchup.com/model.html?id=f4772c3085920f3725f7c1d1bb7d2357
Tubing: https://3dwarehouse.sketchup.com/model.html?id=ud4de7338-c082-4fe2-a44b-ed7c4fe864af
Block: https://3dwarehouse.sketchup.com/model.html?id=6a9c67ca9974305b6d8b7ab7de90a512
