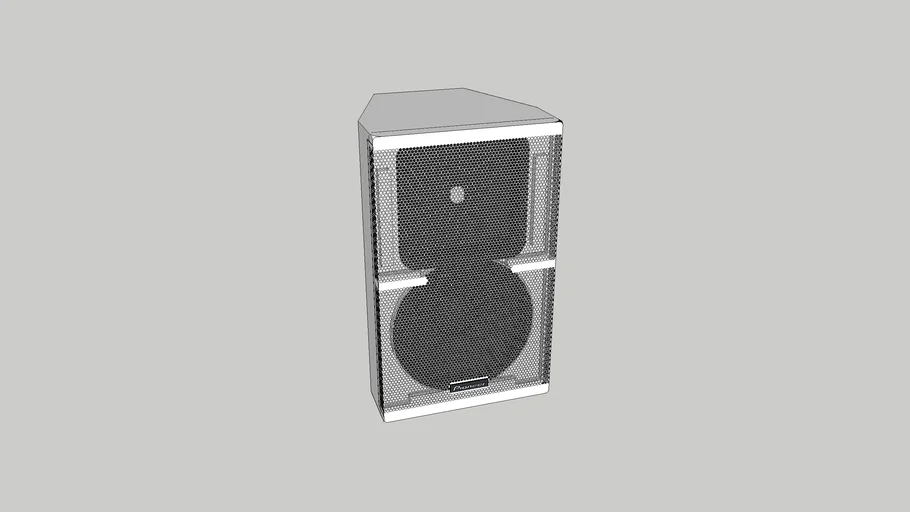

Specification of XY-122
Enclosure Type: Two-way, passive, reflex-loaded
Frequency Response: 70 Hz to 20 kHz
Sensitivity (1 W/1 m): 101 dB
Nominal Impedance: 8 Ω
Power Handling: 400 W RMS, 800 W Program
Maximum SPL: 127 dB cont., 133 dB peak
Dispersion: 90 °H × 60 °V, rotatable
Driver Configuration:
12 inch (320 mm) neodymium LF cone driver,
1.4 inch (36 mm)exit neodymium HF compression driver
Crossover: Asymmetric internal passive crossover
Connectors: 2 × Neutrik SpeakON™ NL4
Dimensions (W×H×D):
380 × 622 × 360 mm
(15 × 24.5 × 14.2-inch)
Weight: 23 kg (50.7 lbs)
Rigging and Hardware:
8 × M10 threaded mounting points (4 top/4 bottom),
2 × M10 threaded mounting points on rear,
4 × M10 threaded mounting points on side (2 left/2 right),
4 × M8 threaded points on rear (for wall mount bracket),
1 × flush handle on rear,
1 × 35 mm polemount socket
Grille: Hex punched steel
Enclosure: 15 mm (0.6-inch) birch plywood
Finish: Impact-resistant, White semi-matt textured
Suggested Power Amplifier:
Recommended : K3DSP
Minimum : M30DHDSP
Accessories: polemount socket cover
(-W model only)
