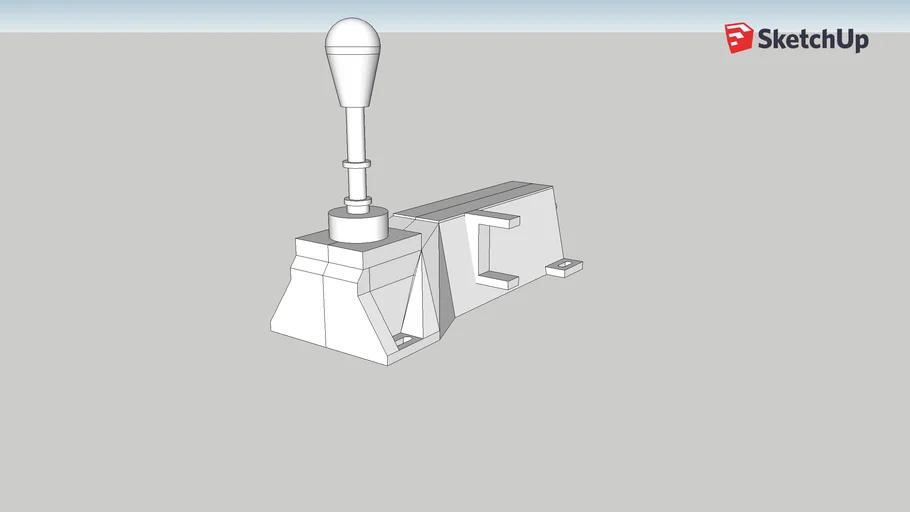

This model is meant to be used for creating sim rig layouts.
Accuracy of mounting holes and pattern ca. ±1mm
Accuracy of outer shape ca ± 2 mm
This should be accurate enough to detect collisions and check feasibility of mounting solutions while still keeping relatively low file size and triangle count.
For creating this, the 2D drawing from the Pro-Sim homepage was used (see link below).
