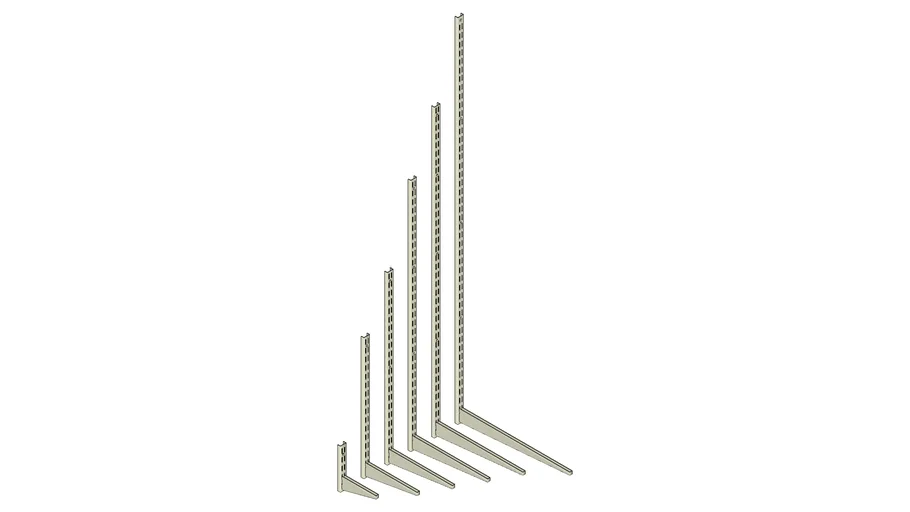

Detailed but relatively low-poly uprights and shelving brackets for common sizes of Spur shelving.
Uprights have 32mm slot spacing (there is also a 31.75mm or 1-1/4" variety).
Slot and hole positions may be slightly at variance with actual product but not by much.
I have ignored holes in the shelf brackets - they have two each on the underside.
Brackets 145, 220, 270, 320, 370 and 470mm, and uprights 170, 520, 710, 1000, 1220 and 1500mm.
