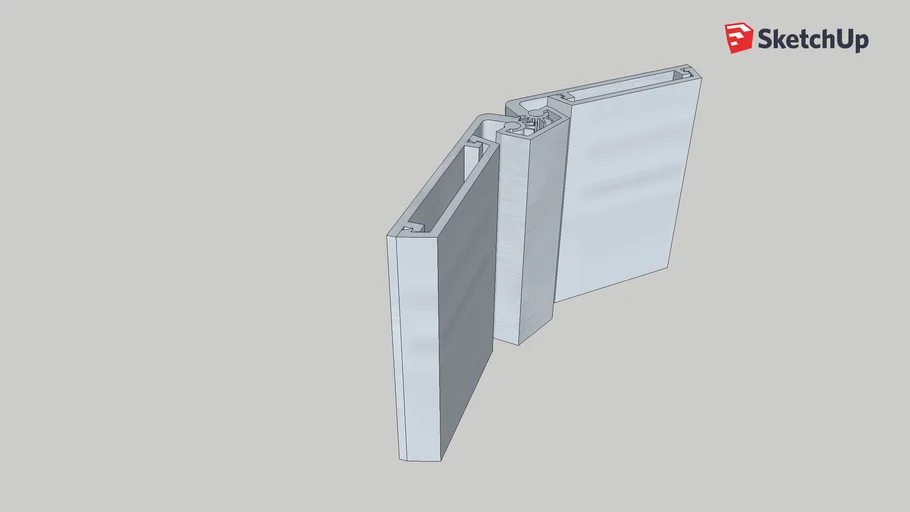

Geared Continuous Hinge, Full Surface, 8 cm Segment, Open 45° Position
This is an 8 cm segment which can be stacked and then push-pulled on the ends to get whatever length you need.
Full Surface: This hinge is designed to be mounted by bolting it to the flat surface of the door (either the interior or exterior surface of the door) as well as the interior or exterior surface of the frame/wall. For hinges designed to be mounted against the side of the door and frame, look for a full mortise or half mortise/half surface hinge.
Note: Gear mechanism has been drawn by eye, and is not based on the specifications of any real equipment. Model is intended for aesthetic use only. Not intended as a template for fabrication.
