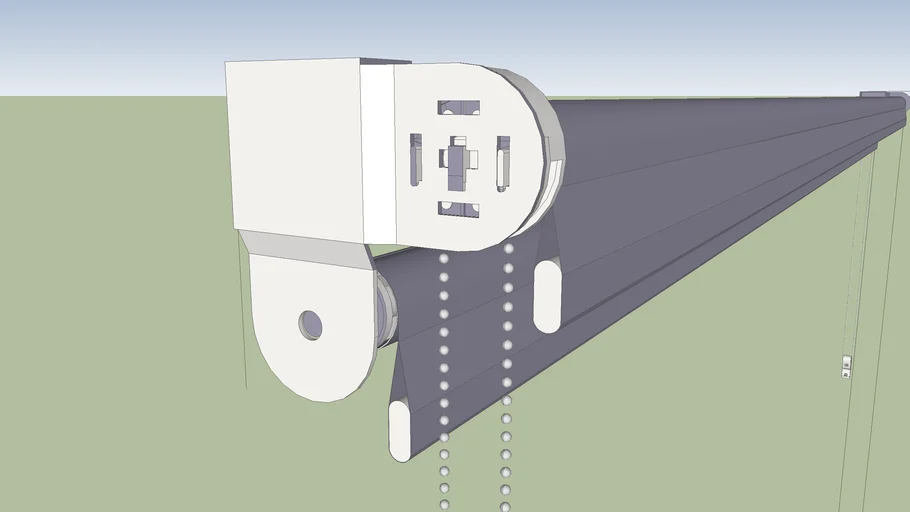

Drawn from life by author for use in household design - using as an example a John Lewis W 910mm H 1600mm roller blind. Component parts are to scale and locked individually or in groups. All visible details of the John Lewis version (code 622 21703) are included in drawing, as is an internal spring. Does not include full manufacturing details. Supplied in standard sizes for cutting down to required width.
Turn on Layer 'Awnings - Out 'to show blind extended. Layer 'Awnings - In' shows it retracted.
