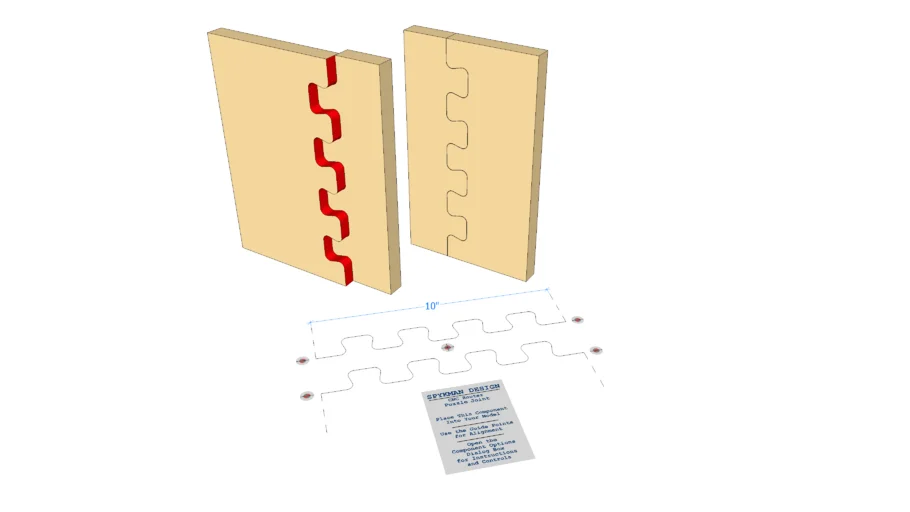

This is a Dynamic Component to create both halves of a puzzle joint. It is used for joining two panels in the same plane. It is easily and rapidly customizable in length and spacing using the Component Options dialog box. It has variable clearance in the joint line (more clearance in the tight curves).
Incorporate the two halves of this joint into your model to create a drawing for DXF export to CAD software such as Vectric.
